Jet 715155 12" Helical Head Planer/Jointer

SKU
JT9-715155
$6,489.00
Ships direct from manufacturer ?

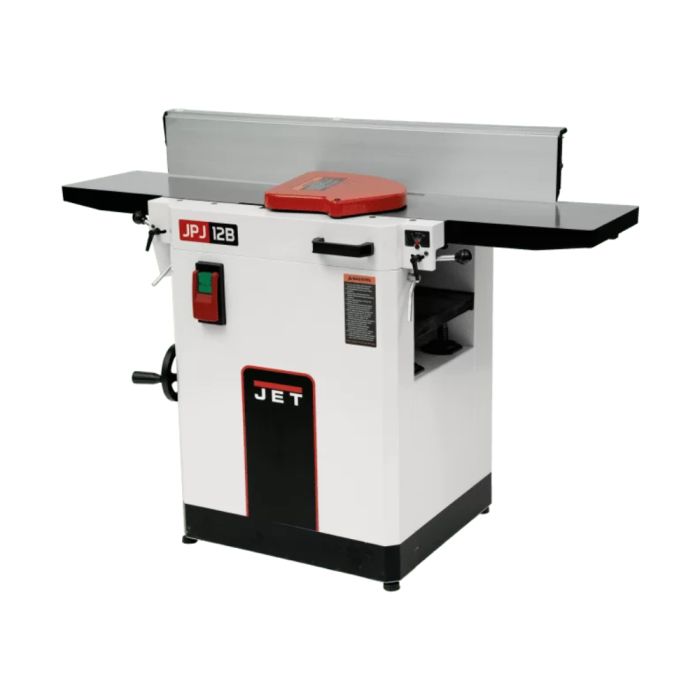

We don’t have to choose between buying a jointer or a planer – with the JPJ-12B, we can have both. This versatile machine features an extra-large aluminum extruded fence with centered controls for quick adjustments, a built-in dust chute capable of handling both planing and jointing operations, and a powerful 3-horsepower motor that can handle the toughest lumber. A heavy-duty, fully welded steel base cabinet houses the motor and the planer table mechanism, while providing solid mounting for the associated controls and support for the jointer table and fence assemblies. Best of all, the fence can stay put when changing over functions.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerJet
ConditionNew
Features
  • Extremely quick changeover between jointing and planing functions. Fence does not need to be removed
  • Heavy-duty cast iron tables with a ground finish to ensure accuracy and flatness
  • Heavy-duty, one-piece steel closed stand includes mounting tabs for increased stability
  • Large handwheel for quick and precise adjustments of planer table
  • Parallelogram design keeps the table close to the cutterhead for improved finish and allows for precise depth of cut adjustments
  • Forty Two 4-sided Carbide Insert cutterhead provides rapid cutting and a superior finish
Type Planer/Jointer
Cutterhead Diameter 2 3/4"
Cutterhead Speed 5300 RPM
Dust Collection Minimum CFM Required 550
Dust Port Outside Diameter 4"
Feed Rate - Planing (FPM) 2 Speed 16 to 26 FPM
Fence Positive Stops 90 Deg and 45 Deg R
Fence Size (L x H) 43 1/4" x 5 7/8"
Fence Tilt 90 Deg to 45 Deg R
Helical Knife Size (L x W x T) 0.59" x 0.59" x 0.10"
Jointer Cutting Capacity (W x D) 12" x 1/8"
Jointer Table Size (L x W) 55" x 12 1/32"
Maximum Depth of Cut - Planing 5/32"
Maximum Planing Thickness 8 3/4"
Maximum Planing Width 12"
Minimum Planing Length 10"
Motor Power 3 HP
Motor Voltage 230 V
Net Weight 453 lbs
Number of Knives 42 four-sided inserts
Overall Dimensions (L x W x H) 55 7/16" x 28 15/16" x 40"
Overall Height 40"
Planer Cutting Capacity (W x D) 12" x 8 3/4"
Planer Table Size (L x W) 25" X 12 1/32"
Prewired Voltage 230 V
Prop 65 Cancer and Reproductive Harm
Recommended Circuit Size (Amps.) 30 A
Type of Cutterhead Helical Head
Full Load Amps 15 A
Running Amps 4.5 A
