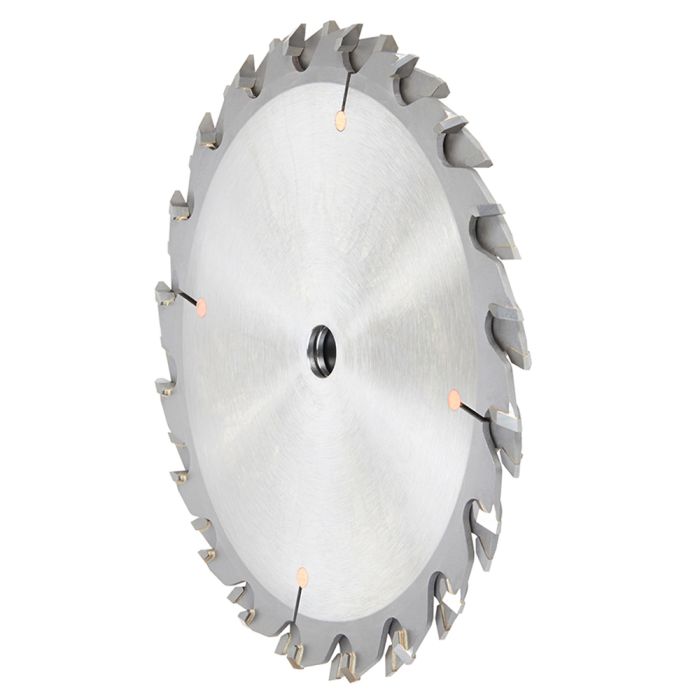

Amana Tool 508400 8" Carbide Tipped Adjustable ACM Scoring Saw Blade Set

SKU
508400
$230.60
Ships direct from manufacturer ?

This set contains two carbide tipped saw blades and a shim set. This unique system can be widely used for scoring many cladding materials (wall coverings) such as Alucobond, Alupanel, Dibond, ALPOLIC CCM, Trespa, Durabond and more. The materials are used on facades and interior wall surfaces that can be found in office buildings, hospitals, convention centers, airports and hotels, along with exterior signage. *ACP is a type of ACM flat panel that consists of two thin aluminum sheets bonded to a non-aluminum core. ACPs are frequently used for external cladding or facades of buildings, insulation, and signage. **Durabond is a polyethylene core with 0.3mm colored aluminum sheet on either side, pre-finished requiring no decoration. Cutting V-shaped grooves with flat bottoms, whereby the aluminum cover and a part of the core is removed, allows for folding the remaining material by hand.

Warning: This set requires a custom zero clearance throat plate.

Warning: Not to be used with portable saws.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerAmana Tool Corp.
ConditionNew
Blade Diameter8"
Blade MaterialCarbide Tip
Blade TypeSaw Blade
Type Saw Blade
Bore Diameter (d) 5/8"
Teeth Per Inch 2 x 20
Tooth Grind Aluminum Composite Materials
Hook Angle (a°) 18 Deg
Blade Thickness (Kerf) 10.2 - 11.2 mm
Machine Table Saw
Flat Bottom Range (W) 0.078" - 0.118"
Angle (a°) 45 Deg
Cutting Height (B1) 0.161"
Application For Cutting Angled Cuts with Flat Bottoms in Aluminum/Non-Ferrous/Plastics Composite Sandwich Materials Such as: Aluminum, Clay, Zinc & Wood Composite Panels, Aluminum Composite Materials (ACM), Aluminum, Composite Panel (ACP)*, Alpolic Copper Composite Material (CCM), Alucobond, Alupanel, Dibond, Durabond**, E-Panel, Etalbond, Titanium Composite Material (TCM), Trespa
