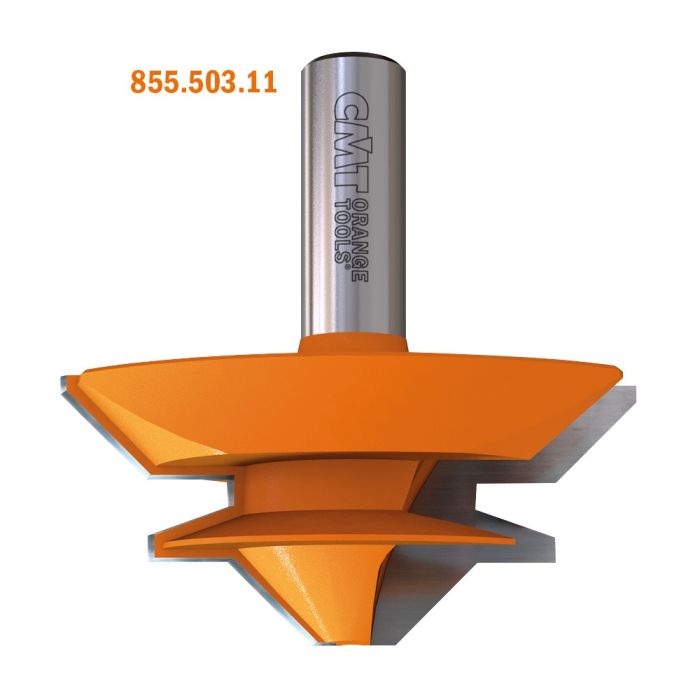

CMT Tools 855.503.11, 2-3/4" x 1-1/4" 45Deg Lock Miter Router Bit

SKU
855.503.11
$103.00
Ships direct from manufacturer?

These are the ultimate bits to craft sturdy miter joints thanks to anti-kickback design and tough tungsten carbide cutting edges. By adding a second smaller bit, We can mill anywhere from 9,5mm to 28,5mm in thickness. A quick and easy way to accurately create boxes, stretcher bars, frames and any assortment of right angle or parallel joint projects. We also have the advantage of using the same bit for parallel joinery projects. To mill sturdy parallel glue joints follow step 1 shown in the illustration with the inside face of the workpiece laid flat on the table and centred to the bit.To make the second part, lay the workpiece flat on the table and centred to the bit. Mill with the inside face-up.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerCMT Tools
ConditionNew
UPC00664252005222
Features
  • Axial angle
  • Tool with bearing
  • Not for hand held use for router table only
Diameter(D)2 3/4"
Overall Length(L)2 3/4"
Shank(d)1/2"
TypeLock Miter Router Bit
Cutting Length1-1/4"
Cutting Angle45 Deg
Maximum Stock Thickness19/32" ~ 1-1/8"
Number of Cutting Edges2
MaterialTungsten Carbide Tipped
Right-Hand or Left-Hand RotationRH
