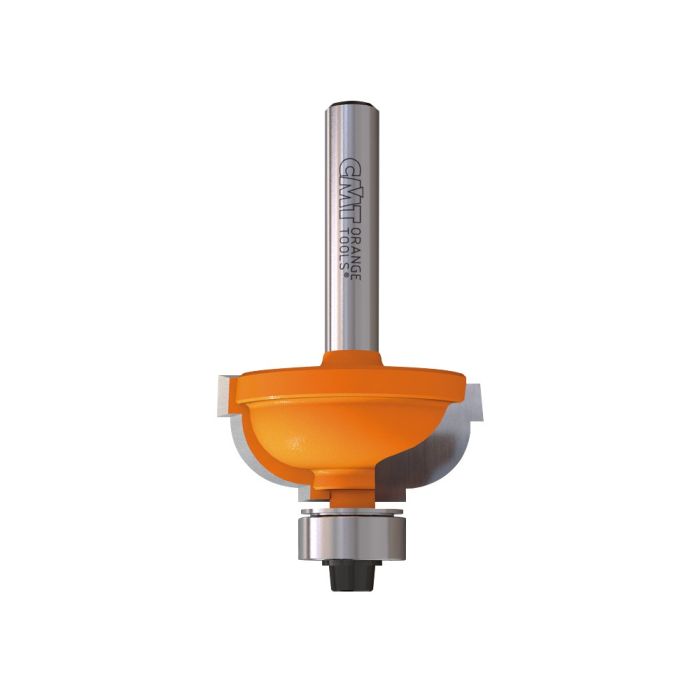

CMT Tools 863.080.11, 1-1/4" x 9/16" Cavetto Edge Mould Router Bit

SKU
863.080.11
$35.00
Ships direct from manufacturer?

The cavetto bit cuts beautiful, traditional profiles, but us may also use just a portion of the bit to cut a more simple and cleaner cove edge.

This bit adds a special touch to furniture pieces by making traditional cove profiles with top and bottom fillet grooves in any kind of wood and wood composites.

Important: Always assemble the black bearing heat shield with the raised side up when changing the bearing. Improper assembly will cause the screw to come loose and the bearing to fall off when routing.

Shop Tips: Undersized bearing to use after resharpening.

791.062.00 Ø9,3 replace bearing 791.002.00 (Ø9,5) after resharpening

791.063.00 Ø12,5 replace bearing 791.003.00 (Ø12,7) after resharpening.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerCMT Tools
ConditionNew
UPC00664252005567
Features
  • Anti-kickback
  • Tool with bearing
  • Axial Angle
Diameter(D)1 1/4"
Overall Length(L)2 1/4"
Shank(d)1/4"
TypeRouter Bit
Radius5/16"
Cutting Length9/16"
Number of Cutting Edges2
MaterialTungsten Carbide Tipped
Right-Hand or Left-Hand RotationRH
Spare Parts990.423.00, 990.423.00, 990.423.00, 991.057.00
Profile TypeCavetto Edge Mould
