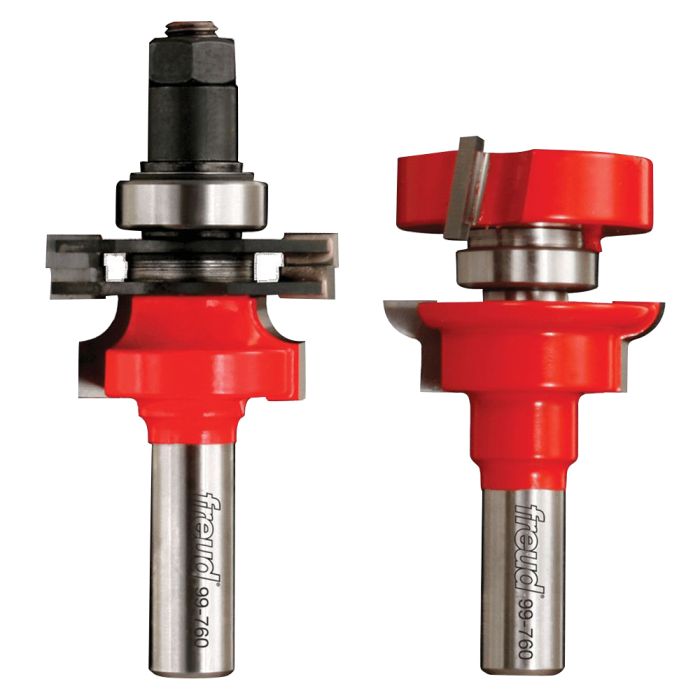

Freud 99-760 Round Over Premier Adjustable Rail and Stile Router Bit, 1-11/16 x 3-3/4 inch, Carbide

SKU
99-760
$137.97
In Stock
Freud's unique Premier Adjustable Rail and Stile System builds perfect doors in material from 5/8 inch to 1-1/4 inch thick, and also features Freud's patented technology for producing extra-strong long tenon joints. The System also includes adjustable shims to adjust the panel groove from 7/32 inch (5.5mm) for thinner plywood panels to 3/8 inch (9.5mm) thick for larger solid wood raised panels. Offered in five different profiles to suit any project! For even more versatility, add optional cutters to produce double-sided doors, or the optional cutter for glass and screen door construction. Use in table-mounted routers to mill and hardwood or softwood.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
Manufacturer Freud
Condition New
UPC 00892508709
Features
  • Build rail and stile doors with your choice of five different profiles with thickness from 5/8 inch to 1-1/4 inch
  • Patented Extended Tenon Capability for milling extra-strong long tenon joints
  • Unique cutter geometry to eliminate tearout
  • TiCo Hi-Density Carbide to maximize bit life and material finish
  • Freud Perma-Shield Coating
Includes
  • 54-760 - Glass/Screen Panel Door Add-on Cutter
  • 99-860 - 1-11/16" Premier Adjustable Rail & Stile Bit - Round Over
PDFs
Application For Plywood Panels
Type Premier Adjustable Rail & Stile
Cutting Diameter(D) 1 11/16"
Flutes 2
Length(L) 3 3/4"
Material Carbide Tip
Shank 1/2"
Warranty Limited Lifetime
Tip MaterialCarbide
StyleRound Over
Overall Diameter1-11/16"
Overall Length(L)3-3/4"
Shank(d)1/2"
Large Radius (Inch)7/32"
