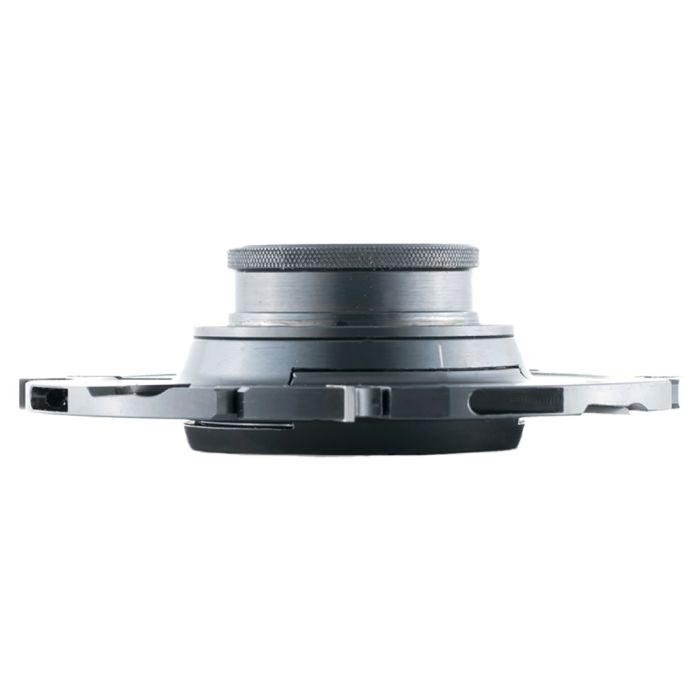

Amana Tool 61340 6-5/16" Insert Carbide Adjustable Groove Shaper Cutter with Scorer & Ring Nut

SKU
61340
$565.95
Ships direct from manufacturer ?

Hard wearing steel body complete with tungsten carbide knives and scorer for improved finish. Cutting width can be adjusted in 0.1 mm increments by special threaded bushing and scale without removing the cutter from the spindle.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerAmana Tool Corp.
ConditionNew
UPC73868561340
ApplicationThickness Grooves and Slots in Softwood, Hardwood and Man-Made Boards (With or Without Coating) on a Spindle Molder
Replacement KnivesAMA-17, RCK-70
TypeShaper Cutter
MaterialCarbide
Teeth4 + 4
Diameter (D)6 5/16"
Bore Diameter (d)1 1/4"
Cutting Height (B)5/16" - 19/32"
Maximum t1 3/16"
Maximum RPM5000 - 6900 RPM
StyleAdjustable Groove
