Powerful cordless beveler combined with the perfect accessories for creating a 45° bevel. For the preparation of subsequent coatings for flexible work in the workshop and on construction sites. Includes one CORE 18 V 8 Ah AS battery and one GAL 18V-160 AS charger.
WARNING: Proposition 65 Warning for California Residents View Details
Unpack the tool and get started: The set is designed for making bevels on flat materials, sheet metal and containers, inner and outer edges, and contours
High removal rate, low effort, and infinitely variable speed adjustment for different materials
Ergonomic due to its light weight and compact design
Extensive user protection due to soft start, restart protection, jam monitoring, and electronic overload protection
Fein brushless PowerDrive motor for high performance and durability
Extensive user protection due to soft start, restart protection, jam monitoring, and electronic overload protection
Compatible with all CORE 18 V AMPShare batteries and chargers, for even more power and flexibility. Also suitable for 18 V Bosch Professional cordless tools
COOLPACK 2.0 technology ensures a 135% longer battery service life, enabling longer operation time
State-of-the-art cell technology and intelligent battery management deliver 87% more power than conventional batteries
CORE 18 V Li-ion battery with Highpower cells, charge indicator and electronic cell protection (ECP). ECP protects batteries against overloading, overheating and deep discharge
Easily transported with our stackable L-BOXX system

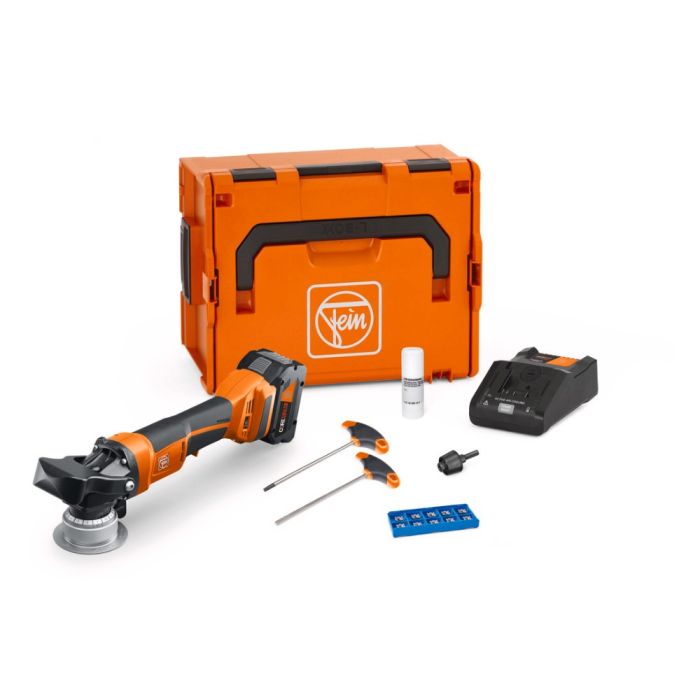

Includes
1 AKFH 18-5 AS Including 45° Milling Head
3 Retaining Screws SX
1 Allen Key 4 mm
1 Torx TX 15 Screwdriver
1 Cutting Paste
1 Package of 10 SX Bevel Inserts for Universal Application
1 Diameter 21.69 mm Guide Roller for 45° Bevel and 2.5 mm Radius
1 CORE 18 V 8.0 Ah Battery Pack
1 GAL18 V-160 AS Rapid Charger
1 Plastic Carrying Case (L-BOXX 238)
Application
Installation Work: Well Suitable, Chamfer length up to 1/4 [5] in[mm] at 45 Deg: Suitable
Electric Brake
No
Variable speed
No
Type
Beveler
Battery Interface
18 V AMPShare
No Load Speed
2,400 - 7,500 RPM
Maximum Chamfer Length at 45 Deg
3/16"
Maximum Chamfer Height at 45 Deg
1/8"
Chamfer Angle
45 Deg
Cutting Head Mounting
3x SX Insert
Support Plate Diameter
3-7/8"
Weight without Battery
5.56 lbs
Sound Pressure Level LpA
89.7 dB
Measurement Uncertainty of the Measured Value KpA
3 dB
Sound Power Level LWA
97.7 dB
Measurement Uncertainty of the Measured Value KWA
3 dB
Peak Sound Value LpCpeak
103.4 dB
Measurement Uncertainty of the Measured Value KpCpeak
