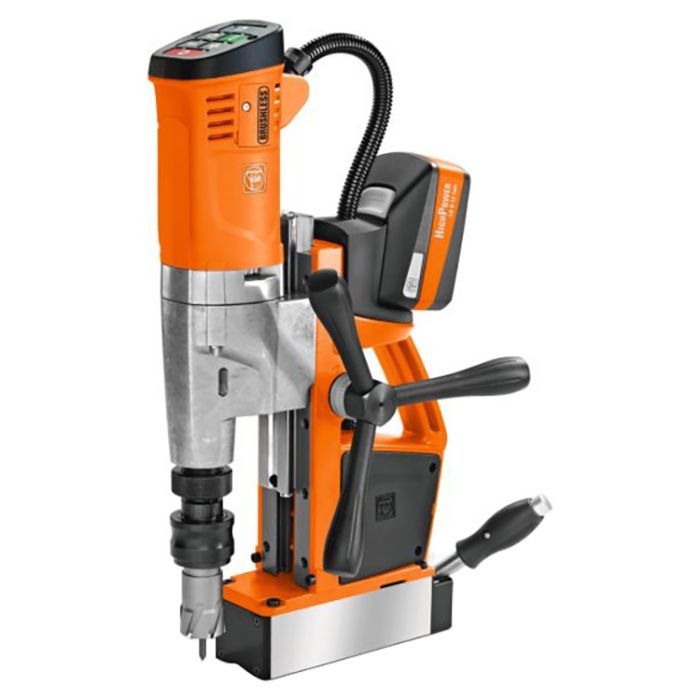

Fein 7-170-02-61-09-0 AJMU 137 PMQW 1-3/8" 18V Cordless Universal Magnetic Core Drill

SKU
71700261090
$2,089.00
Ships direct from manufacturer ?
Notify me when the price drops
Add to Wish List Add to Compare
Shipping Policy Return Policy

Small, long-stroke, 1-speed universal cordless magnetic base drill with forward / reverse rotation, MT2 tool mounting, permanent magnet and maximum functionality for mobile work on the construction site.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerFein Power Tools
ConditionNew
UPC04014586888835
Features
  • Extremely wear-resistant tool concept with swivel-mounted motor cable protection hose for tough conditions in industry and skilled trades
  • Small and lightweight tool for persistently high long-term work progress thanks to brushless Fein powerdrive motor with tacho electronics and Fein highpower battery with high-current-capable cells
  • Flexibility in all mobile drilling operations, such as mag base drilling, spiral drilling, tapping, sinking and reaming
  • Fein high power lithium-ion battery. Continuously high current output with 75% higher amperage than lithium-ion batteries for high cutting speed
  • Simple and error-proof control concept in the operator's field of view
  • Convenient magnetic holding force display
  • Motion sensor
  • Reversible
  • Electronic speed control
  • Extra long stroke
  • Extra narrow permanent magnet with magnetic bias
  • "Memory function" speed storage
  • The battery capacity can be read directly on the battery
  • Fein safetyCell technology. Protects the battery and the machine from overloading, overheating and deep discharge
  • Highest performance with Fein highpower lithium-ion battery
  • Tilt sensor
Includes
  • 2 x Battery Packs (High Power Lithium-Ion)
  • Chip Hook
  • Case
  • Rapid Charger ALG 80
  • Pilot Pin
  • Coolant Pump
  • Chip Guard
  • Safety Strap
  • Drift
Video

ApplicationMag Base Drilling Metal Up to 1-3/8" Diameter, Twist Drills with Drill Chuck, Spiral Drilling with MT Fitting, Tapping, Countersinking, Reaming, Performing Overhead Work, Installation Work, Workshop Jobs
Type Core Drill
Cordless or Corded Corded
Battery Voltage 18 V
Battery System Lithium-Ion / HighPower Lithium-Ion
Battery Amp Hour 5.2 Ah
Motor Type Brushless
Speed (RPM) 130 - 520 RPM
Mount Type MT 2
Maximum Carbide Cutting Diameter 1 3/8"
HSS Maximum Cutting Diameter 1 3/8"
Maximum Drilling Depth 2"(3")
Maximum Twist Drill Diameter 3/4"
Tapping M 14
Maximum Countersinking Diameter 1 1/4"
Maximum Reaming Diameter 3/4"
Cutter holder 3/4"
Stroke Rate 5 5/16"
Total Stroke Range 10 1/4"
Magnetic Holding Force 2023 lbs
Magnetic Base Dimension 7 11/16" x 2 3/4"
Weight with Battery 28.22 lbs
Weight without Battery 26.68 lbs
Sound Pressure Level LpA 82.4 dB
Sound Power Level LWA 93.4 dB
Peak Sound Value LpC Peak 97.1 dB
Vibration Value 1 αhv (3-Way) αh,D 0,6 m/s²
Measurement Uncertainty of the Measured Value Kα 1.5 m/s²
Measurement Uncertainty of the Measured Value KpA 3 dB
Measurement Uncertainty of the Measured Value KWA 3 dB
Measurement Uncertainty of the Measured Value KpCpeak 3 dB
