Amana Tool AMS-225, 1/4" 4-Piece 3D CNC Signmaking Router Bit Set

SKU
AMS-225
$434.29
Ships direct from manufacturer ?

The innovative CNC tool design uses a high grade solid carbide insert knife which allows you to get two uses out of each insert. Once the knife show signs of wear you can rotate the insert for a brand new cutting edge. These industrial V-Groove insert router bits were especially designed for applications including: Miter folds - "create the perfect joint", Signmaking and lettering.

*When working with Xanita LightBoard panel (X-board X-board plus) we recommend using MDF knives for better results.

Secure locking screw system ensures maximum safety and maintains cutting accuracy. CNC router requires quality hold downs to ensure the least possibility of material shifting during operation.

Attention: Item #RC-1142, when using on small, hobby type CNC machines, set RPM to 12,000 RPM with 30% slower feed rate.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerAmana Tool Corp.
ConditionNew
UPC00073868522525
Features
  • Long lasting insert knives provide superior smooth quality cuts every time
  • Quick and precise replacements of dull knives
  • Due to insert accuracy tool life is extended
  • Insert tooling allows for harder grades of carbide
  • Special carbide grades for special applications
  • Knives can be re-sharpened multiple times without affecting the original profile
  • Cost effective solution compared to replacing brazed router bits
  • Wood Storage Box Dimensions: 8" L x 6-1/4" W x 3-1/4" H

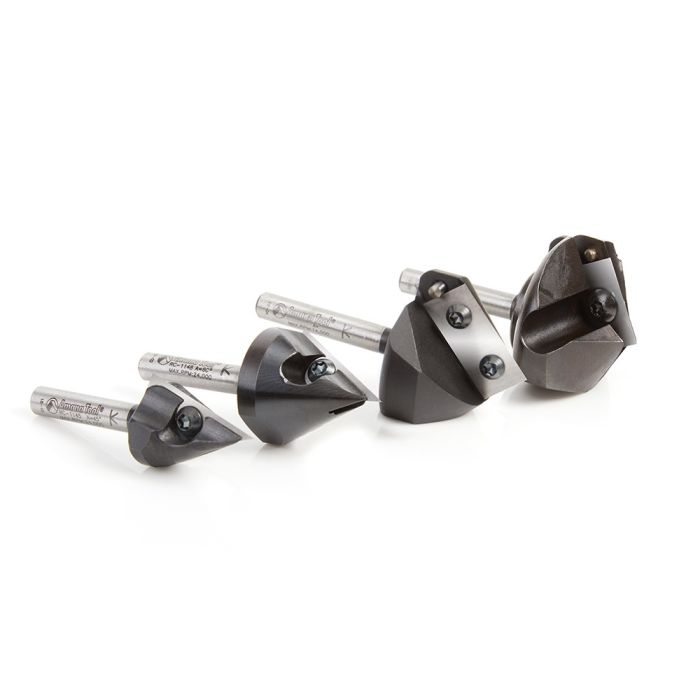

Includes
  • RC-1142 Insert V-Groove 90 Deg x 3/4 x 1/4 Inch Shank CNC Router Bit
  • RC-1148 Insert V-Groove 60 Deg x 59/64 x 1/4 Inch Shank CNC Router Bit
  • RC-1145 CNC Insert V-Groove 45 Deg x 13/16 Dia x 63/64 x 1/4 Inch Shank Router Bit
  • RC-1146 Insert V-Groove 120 Deg x 1-23/64 x 1/4 Inch Shank CNC
MaterialSolid Carbide
Shank(d)1/4"
TypeRouter Bit Set
Angle45/60/90/120 Deg
ApplicationAluminum Bronze Copper & Carbon Fiber (Engraving Only), Foam, Laminate, Melamine, MDF/HDF, Sign Board, Solid Surface, Veneered Plywood, Wood, Xanita Board*, 20lbs High Density Urethane
