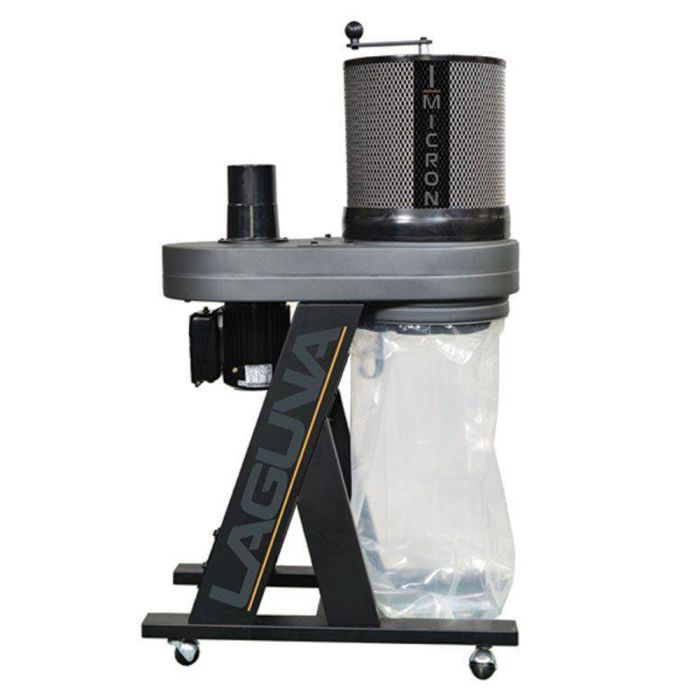

Laguna MDCBF1110C1M B|Flux 110V Canister Dust Collector, 1HP/1Ph

SKU
MDCBF1110C1M
$719.00
Ships direct from manufacturer ?
The best looking single stage dust collector to hit the market in years. Sleek design and power to match. No more fumbling with a steel band to mount your lower bag, the b|flux comes with a patented Snap-Band that makes changing the bag a breeze. Unlike most 1HP units the b|flux feels solid and has a low dB rating. The horizontal dust chute provides optimum airflow and can swivel 180 degree to make the 4 inch outlet face downwards. The B|Flux:1 comes standard with a 1 micron canister providing filtration of 99.97 percent of particles between 0.2 ~ 2 microns and features 17.2 square feet of polyester spun bond pleated filter to ensure maximum airflow. Hand crank cleaning prevents clogging of the filter.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerLaguna
ConditionNew
Features
  • Switch Type: Motor Mounted Direct Switch
  • Canister Cleaning: Manual handle crank 360 degree
Horsepower1 HP
Motor Phase1 Ph
Speed (RPM)3,450 RPM
Drum Collection Bag MaterialPlastic
Impeller MaterialSteel
Impeller TypeRadial Fin
Switch TypeMotor mounted direct switch
Canister CleaningManual Handle crank 360 Degreee
Hand Held Remote ControlNone
Voltage110 V
Amperage8.4 amps
Recommended Breaker15 amps
Frequency60Hz
Shop Setting CFM*550
Inlet CFM650
Max Static Pressure (inches of water)4.86"
Impeller/Fan Size9"
Balanced ToISO 1940
Inlet Diameters4" x 1 ports
Drum Collection Bag Diameter350 mm
Drum Collection Bag Length980 mm
Canister Filter Type1 Micron
Filtration Efficiency (at 99.97%)0.2-2micron
MERV Rating12
PlugYes
CSA ApprovedYes
Canister Diameter (mm)360 mm
Canister Diameter (in.)14.2"
Cansiter Length (mm)300 mm
Cansiter Length (in.)11.8"
Filter Surface Area1.6m²/17.2ft²
Wheels2" Ball Caster
Decibel Reading (at 9.8ft)76 dBA
Assembled Dimensions (L x W x H)29" x 14.8" x 50.4"
Assembled Dimensions (L x W x H)736 mm x 376 mm x 1280 mm
Weight71 lbs
