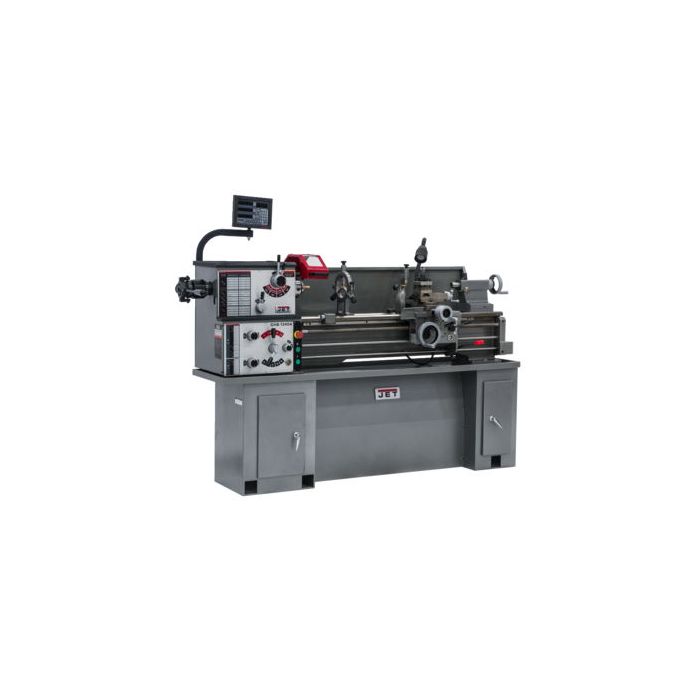

JET 321130 BDB-1340A 230V Lathe with Newall DP700 Dro, 2HP/1Ph

SKU

JT9-321130

$14,959.00

Ships direct from manufacturer

Usually ships in 24-48 hours

Notify me when the price drops

Product Description
Features/Specifications
Reviews

Product Description

JET Belt Drive Bench Lathes feature an enclosed gearbox with helical cut gears for noise reduction and smooth operation. The full length splash guard on all sizes prevents hot chips and fluid from contaminating the work area and the quick change gearbox allows for fast and easy gear changes for metric threading. Each JET Lathe comes loaded with features you’ve come to expect, all backed by the industry leading JET Two Year Warranty

WARNING: Proposition 65 Warning for California Residents View Details

Features/Specifications

More Information
Manufacturer	Jet
Condition	New
UPC	66275551185
Features	Image shown with optional bench, p/n 321443AK Enclosed gearbox design provides smooth, quiet operation Fast, easy speed changes Hardened and ground gears are featured in the headstock and gearbox D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings Headstock is constantly oiled during operation Gear box gives wide inch threading and feed capabilities with no gear changes V-way bed design is induction hardened and ground Gap bed section provided for larger diameter work Independent leadscrew and feed rod Spindle actuation control is apron mounted Compound and cross slide have backlash elimination Adjustable gibs are incorporated in the carriage and slideways Tailstock may be offset for turning tapers and includes an inch-metric graduated quill Oil pan included Tolerance test certificate included 6 inch 3 jaw direct mount chuck with top reversing jaws 8 inch 4-jaw chuck 12 inch face plate Steady and follow rest Four-way tool post Metric change gear Splash guard Centers and headstock center sleeve Threading dial Tool box and tools
PDFs	Catalog
Horsepower	2 HP
Motor Phase	3 Ph
Stationary type	Bench
Warranty	2 Year

Motor Voltage	230V
Prewired Voltage	230 V
Size	13" x 40"
Digital Readout	Newall DP700
Swing Over Bed	13"
Swing Over Cross Slide	7 25/32"
Swing Through Gap	18 3/4"
Length of Gap	8"
Distance Between Centers	40"
Spindle Bore	1 3/8"
Spindle Mount	D1-4
Number of Spindle Speeds	12
Range of Spindle Speeds (RPM)	70 - 2,000 RPM
Spindle Taper with Sleeve	MT-7 (MT-3)
Number of Longitudinal and Cross Feed Rates	38
Range of Longitudinal Feeds (IPR)	0.0018 - 0.0374 IPR
Range of Cross Feeds (IPR)	0.0006 - 0.013 IPR
Number of Inch Threads	38
Range of Inch Threads (TPI)	3 1/2 - 80 TPI
Number of Metric Threads	23
Range of Metric Threads	0.45 - 10
Maximum Tool Size	5/8" x 5/8"
Compound Slide Travel	2 11/16"
Cross Slide Travel	6 5/16"
Carriage Travel	35"
Tailstock Spindle Travel	3 3/4"
Taper in Tailstock Spindle	MT-3
Follow Rest Capacity	2 3/4"
Steady Rest Capacity	2 5/8"
Width of Bed	7 3/8"
Drive	Belt
Length	71"
Width	32"
Height	45"
