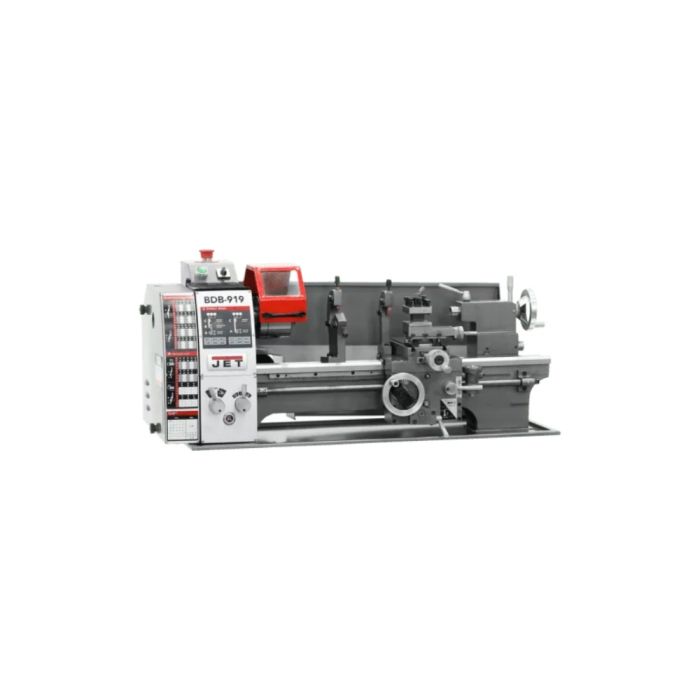

Jet JT9-321378 BDB-919, 3/4HP 115V 1Ph Belt Drive Benchtop Lathe

SKU

JT9-321378

$4,179.00

Ships direct from manufacturer

Notify me when the price drops

Product Description
Features/Specifications
Reviews

Product Description

The BDB-919 benchtop lathe is perfect for the most versatile shops. Engineered with precision induction hardened ground bed-ways and precision tapered roller bearings, the BDB-919 delivers the smooth operation and rigidity needed to craft professional pieces.

WARNING: Proposition 65 Warning for California Residents View Details

Features/Specifications

More Information
Manufacturer	Jet
Condition	New
UPC	00731325545647
Features	Backlash adjustments provided throughout the carriage Emergency stop within easy reach of the Operator Full Length Splash Guard Power longitudinal feed allows threading and reverse threading Quick change gearbox provides wide range of inch and metric threads Reversing switch for added versatility Safety on/off switch Some images show lathe with optional stand Standard Accessories
Horsepower	0.75 HP
Motor Phase	1 Ph
Warranty	2 Years

Type	Benchtop Lathe
Carriage Travel	17.5"
Compound Slide Travel	1-7/8"
Maximum Tool Size	1/2"
Model Number	BDB-919
Number of Inch Threads	27
Number of Longitudinal and Cross Feed Rates	60
Number of Metric Threads	12
Number of Spindle Speeds	6
Overall Dimensions (L x W x H)	41" x 22" x 20"
Range of Inch Threads (TPI)	8 - 56 TPI
Range of Longitudinal Feeds (IPR)	0.0006-0.0368 IPR
Range of Metric Threads	0.5 - 3.5
Range of Spindle Speeds (RPM)	130 - 2000 RPM
Spindle Bore	3/4"
Spindle Mount	1-1/2 x 8 TPI
Spindle Taper with Sleeve	MT-3
Steady Rest Capacity	1-3/4"
Swing Over Bed	8-3/4"
Swing Over Cross Slide	5"
Tailstock Spindle Travel	1-9/16"
Taper in Tailstock Spindle	MT-2
Weight	250 lbs
Width of Bed	4-1/2"
Motor Voltage	115 V
