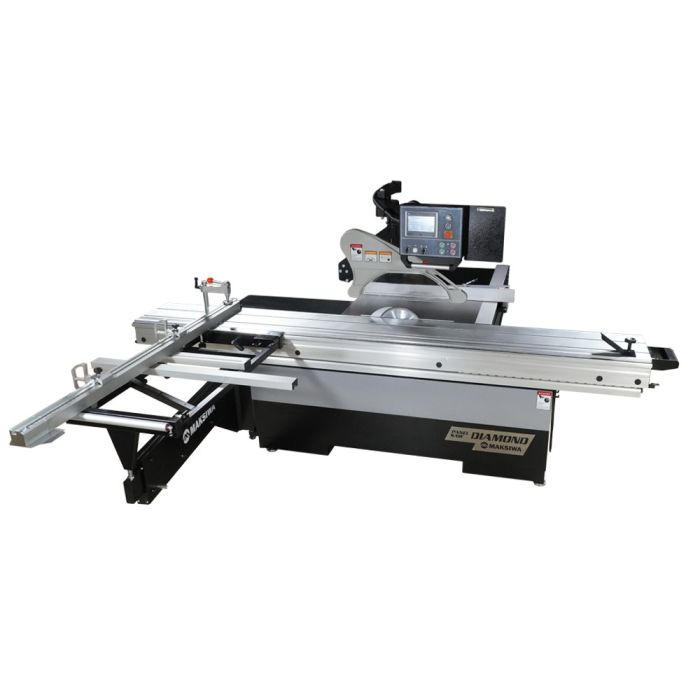

BMD3200.IR Diamond Sliding Panel Saw

SKU
BMD.3200.IR Diamond
$20,999.00
Ships direct from manufacturer ?

The BMD.3200.IR from Maksiwa is a high-performance sliding panel saw designed for woodworking professionals who demand precision and efficiency. Featuring a powerful 10-horsepower motor, advanced CNC-controlled rip fence, and an intuitive touchscreen interface, this machine delivers exceptional accuracy and control for a variety of cuts.

Engineered with a durable, industrial-grade frame, the BMD.3200.IR ensures long-lasting stability and reliability, while integrated safety features and a built-in dust collection system create a cleaner, safer work environment. Whether you’re handling large panels or detailed cuts, this versatile saw excels in all applications. Plus, with a two-year warranty and responsive US-based customer support, Maksiwa provides peace of mind for your investment.

Perfect for cabinetmakers, furniture manufacturers, and custom woodworkers, the BMD.3200.IR is designed to meet the high demands of modern production environments.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerMaksiwa
ConditionNew
PDFs

Download the Manual

Video
Specifications
Main Motor 10 HP/ 7.3 Kw
Main Blade Speed 3,000/4,000/5,000 RPM
Max Blade Diameter 14" | 355mm
Main Blade Arbor 1 3/16" | 30mm
Main Blade Max cutting Height at 90° 4" | 101 mm
Main Blade Cutting Height at 45° 2 3/4" | 70mm
Scoring Motor 3/4 HP / 8000 RPM .75 kw
Scoring Motor Blade 4 3/4" | 12mm
Scoring Blade Arbor 25/32" | 20mm
Scoring Blade Type Conical
Max Ripping Capacity 51" | 1295mm
Crosscut Capacity 126" | 3200 mm
Crosscut Fence Capacity Closed/Open 78" / 120" | 1981mm / 3048 mm
Machine Working Dimensions (LxWxH) 132" x 137" x 75" | 3352 x 3479 x 1905 mm
Cast Iron Table Dimension (LxWxH) 35" x 21" x 34" | 896 X 548 X 864 mm
Sliding Table Dimension (LxW) 126" x 14 " | 3200 x 358 mm
Dust Collection Port (2) 4" | 100mm
Minimum Dust Collection Requirements 1000 CFM | 28m/min
Electrical Specs 3 Phase 220V 40 Amps 60 Hz
Main Body Crate Dimensions (LxWxH) 83" x 45" x 45" | 2108x 1143 x 1143 mm
Main Body Crate Weight Net/Gross 1470 LBS | 667 KGS
Sliding Table Crate Dimensions (LxWxH) 133" x 18" x 15" | 3378 x 457 x 381 mm
Sliding Table Crate Weight Net/Gross 274 LBS | 124 KGS
