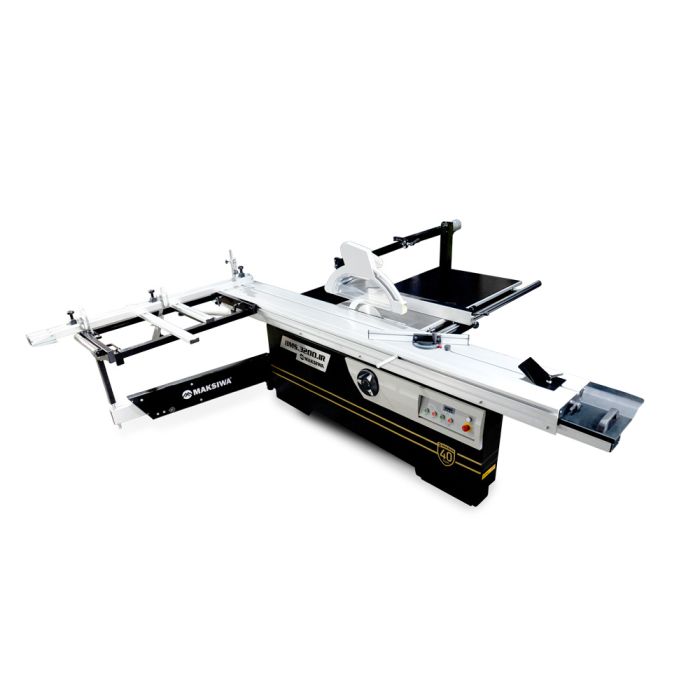

Maksiwa BMS.3200.IR Sliding Panel Saw
Ships direct from manufacturer
This machine is available in both single phase and three phase. Simply note your selection in the "notes" section at checkout.
The BMS.3200.IR is a sliding panel saw tailor made to provide high quality precise cuts in diverse angles with a max cut depth of 4 inches (100 mm) at 90 degree. It is Equipped with a powerful 5 HP motor, cutting guides, miter guide, blade guard.
WARNING: Proposition 65 Warning for California Residents
View Details
More Information
Manufacturer
Maksiwa
Condition
New
Features
New Design, more ergonomic, improved construction and materials.
1HP Scoring Motor (3/4 on the older).
Adjustable Leveling Feet.
Easy Lock on the Crosscut Fence.
Dual Blade Covers (straight and bevel cuts).
Integrated dust collection exhaust on swing-away arm.
Improved packaging.
New Sheet Clamps, Wood Stopper and Slider handle.
New soft touch buttons and control panel.
Sliding Table Height now at 35.5”.
PDFs
Video
VIDEO
Horsepower
5 HP
Speed (RPM)
4,000 RPM
Stationary type
Available in both single phase and three phase
Warranty
2 years
Specifications
Technical Information
BMS.3200.IR
Main Motor
5 HP/ 4000 RPM 3.7 Kw
Max Blade Diameter
12" | 305mm
Main Blade Arbor
1 3/16" | 30mm
Main Blade Max cutting Height at 90°
3 1/2 " | 90mm
Main Blade Cutting Height at 45°
2 1/8" | 53mm
Scoring Motor
1 HP / 8000 RPM .74Kw
Scoring Motor Blade
4 3/4" | 12mm
Scoring Blade Arbor
3/4" | 20mm
Scoring Blade Type
Conical
Max Ripping Capacity
51" | 1295mm
Crosscut Capacity
126" | 3200 mm
Crosscut Fence Capacity Closed/Open
74 3/4" / 108" | 1899 MM / 2743 mm
Machine Working Dimensions (LxWxH)
126" x 137" x 52" | 3200 x 3480 x 1321mm
Cast Iron Table Dimension (LxWxH)
31 1/2" x 21" x 34 3/4" | 800 X 553 X 883 mm
Sliding Table Dimension (LxW)
126" x 14 3/4" | 3200 x 375 mm
Dust Collection Port (2)
4"
Minimum Dust Collection Requirements
1000 CFM | 28m/min
Electrical Specs
1 Phase 220V 22 Amps 60 Hz
3 Phase 220V 11 Amps 60 Hz
Cast Iron Crate Dimensions (LxWxH)
88" x 48" x 43" | 2245 x 1130 x 1090 mm
Cast Iron Crate Weight Net/Gross
1102/1257 LBS | 500/ 570 KGS
Sliding Table Crate Dimensions (LxWxH)
140" x 19" x 8 1/2" | 3556 x 483 x 216 mm
Sliding Table Crate Weight Net/Gross
227/282 LBS | 103/128 KGS
