Bottom Cleaning / Spoilboard Router Bits, Upshear Design

SKU

45560-group

Grouped product items
Product Name	Type	Ball Bearing	Cutter Height(B)	Diameter(D)	Flutes	Material	Overall Length(L)	Shank(d)	Tool No.	Application	Cutting Diameter(D)	Length(L)	RPM	Shank	Replacement Bearing	Replacement Collar
Amana Tool 45560 3/4" Carbide Tipped Bottom Upshear Design Cleaning / Spoilboard Router Bit $49.47	Router Bit	No	7/16"	3/4"	2	Carbide Tip	2 1/4"	1/4"	45560
Amana Tool 45562 3/4" Carbide Tipped Bottom Cleaning / Spoilboard Upshear Design Router Bit $49.47	Router Bit	No	7/16"	3/4"	2	Carbide Tip	2 1/2"	1/2"	45562	For Surfacing Cuts	3/4"	2 1/2"	28,000 RPM	1/2"
Amana Tool 45564 1" Carbide Tipped Bottom Cleaning / Spoilboard Upshear Design Router Bit $52.91					2	Carbide Tip
Amana Tool 45566 1-1/2" Carbide Tipped Upshear Design Bottom Cleaning / Spoilboard Router Bit $78.18	Router Bit	No	5/8"	1 1/2"	2	Carbide Tip	2 3/4"	1/2"	45566
Amana Tool 45561 3/4" Carbide Tipped Upshear Design Bottom Cleaning Router Bit with Upper Ball Bearing $68.16					2	Carbide Tip									47714	47724
Amana Tool 45563 3/4" x 2-1/2" Carbide Tipped Bottom Cleaning Router Bit with Upper BB & Upshear Design $68.34	Router Bit	Upper	7/16"	1"	2	Carbide Tip	2 1/2"	1/2"	45563	For Pattern and Template Routing	3/4"	2 1/2"	28,000 RPM	1/2"	47721	47740
Amana Tool 45565 1" Carbide Tipped Upshear Design Bottom Cleaning Router Bit with Upper Ball Bearing $72.06					2	Carbide Tip									47754	47740
Amana Tool 45567 1-1/2" Carbide Tipped Bottom Cleaning Router Bit $80.50	Router Bit	Upper	5/8"	1 1/2"	2	Carbide Tip	2 3/4"	1/2"	45567						47758	47740

Out of Stock

Notify me when the price drops

Product Description
Features/Specifications
Reviews

Product Description

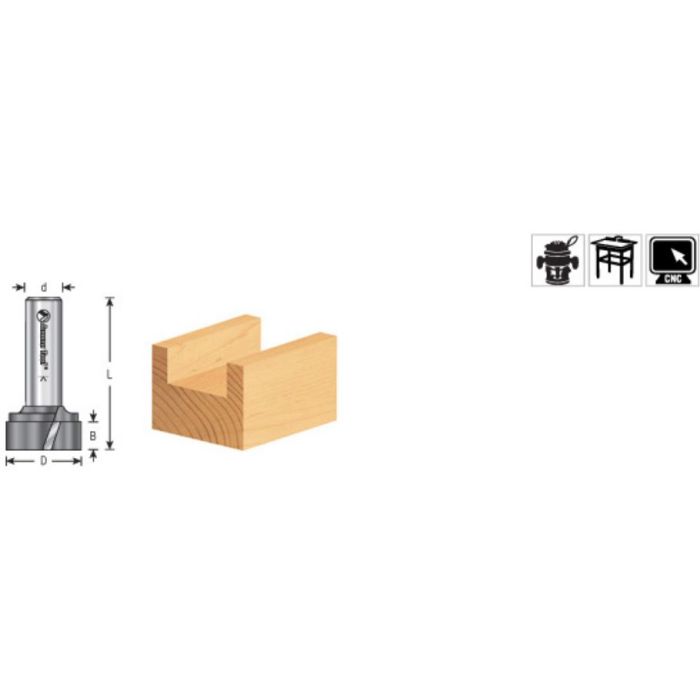

This bit is intended for broad, very shallow cuts, where an exceptional finish is desired. Use it to clean up previously cut dadoes and grooves, or for surfacing cuts. The up-shear configuration improves chip removal, while the cutting-edge orientation produces a smooth surface.

WARNING: Proposition 65 Warning for California Residents View Details

Features/Specifications

More Information
Condition	New
Features	Intended for broad, very shallow cuts Exceptional finish Carbide Tipped
