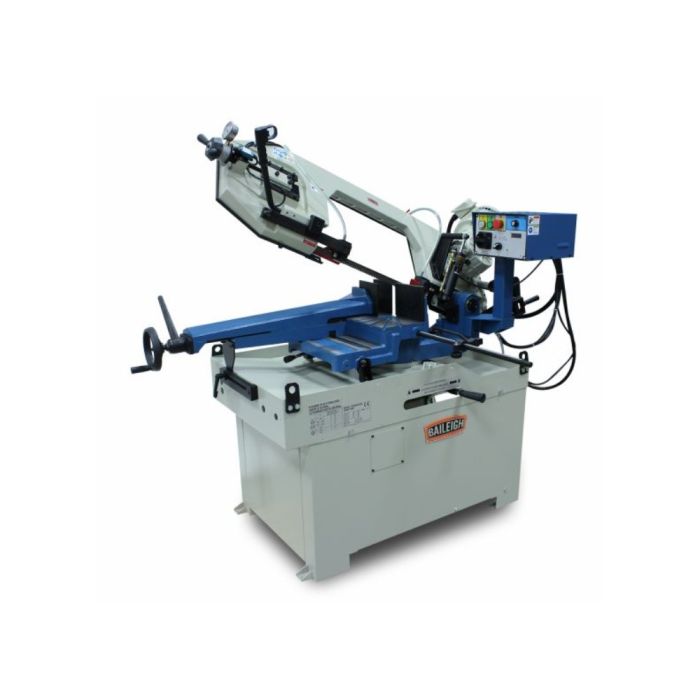

Baileigh Industrial BA9-1001557 BS-350M, 10-1/2" Variable Speed Dual Miter Bandsaw

SKU
BA9-1001557
$9,899.00
Ships direct from manufacturer?

Need to cut at multiple angles in both directions? This dual-mitering band saw has a cast iron head and bow that can swivel 60° right and 45° left.

Modes of operation:

Choose between 2 modes of operation, manual or hydraulic descent, depending on your preference and project.

Manual descent mode:

For small production runs.

Perfect for small or medium sized fabricators’ needs.

Turn on the machine via a trigger switch in the descent handle.

Manually guide the band saw blade through the material.

Hydraulic descent mode:

For larger production runs.

Increases blade life and reduces operator fatigue.

Downfeed adjustment for feed pressure.

Warranty and Support:

We cover this horizontal band saw with a 1-year parts warranty.

Both the saw and replacement parts are typically in stock for fast deliveries.

Includes lifetime technical support by phone. Call up our team of experienced reps any time for troubleshooting or project advice.

Call us at 1-920-654-5815 with any questions you have about this dual miter band saw for sale.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerBaileigh Industrial
ConditionNew
UPC00731325398410
Features
  • 220V 1-phase horizontal band saw
  • 10.5" round capacity at 90°
  • Head swivels 60° right, 45° left
  • 1" blade width
  • 10.5” round capacity at 90°
  • Runs on 220-volt single-phase power. You can use the dual miter band saw just about anywhere
  • 2 hp motor, driven by an AC inverter, makes the machine reliable
  • Direct-drive gearbox saves you the trouble of adjusting pulleys or replacing broken belts
  • Cast iron head and bow, machined to exacting tolerances, reduce vibration and deliver the straightest, highest quality cuts on the market
  • 1” blade width
  • Variable speed control, from 66- 280 fpm, lets you select the speed to suit your material and application
  • Ball bearing blade guides help you get the blade as close to the material as possible to make accurate cuts, ensuring long blade life
  • Patented blade tension device, a liquid-filled gauge, makes it easy to check and adjust the tension
  • Comes standard with a flood coolant system to wash away metal chips and help blades last longer
Warranty1 Year
TypeBandsaw
Blade GuideCarbide x Roller
Blade Speeds (SFPM)66-280 Variable
Capacity Round 90 X 45 X 60 X 4510.63" x 9.45" x 6.3" x 8.28"
Descent ControlHydraulic
DriveGear
Input Power220 V / 1-Ph
Miter Angle Range0 - 60 Deg , 45 Deg L
Model NumberBS-350M
HorsepowerHigh Torque 1.5Kw (AC)
ReturnManual
Table Height35"
Type of Miter AdjustmentDual Swivel Head
Weight865 lbs
