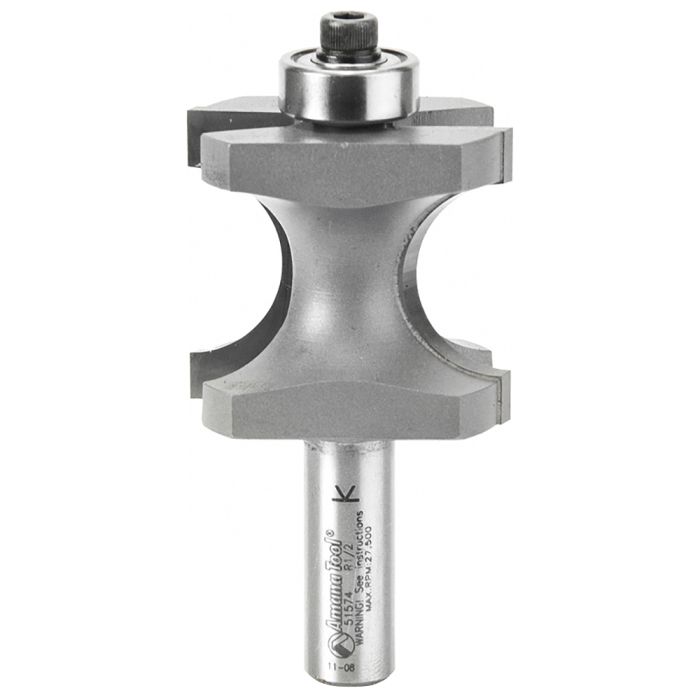

Amana Tool 51574 1-13/16" Carbide Tipped Bullnose Router Bit
SKU
51574
$137.53
Ships direct from manufacturer ?
Shape the full edge of a workpiece with a bullnose radius bit. Ideal for shaping stair treads, window sills, table and counter edges, shelves, and making moldings. The "nose diameter" (M) is the thickness of stock that can be nosed, i.e., given a full 180-degree roundover. Flats at top and bottom of the cutting edges create fillets on stock thicker than the nose diameter. Must be used with an edge guide on handheld routers or the fence on a router table. ‘M’ denotes thickness of material on which a full 180 degree roundover can be accomplished.
WARNING: Proposition 65 Warning for California Residents View Details
| Manufacturer | Amana Tool Corp. |
|---|---|
| Condition | New |
| UPC | 73868515574 |
| Replacement Bearing | 47714 |
| Type | Router Bit |
| Ball Bearing | Lower |
| Cutter Height(B) | 1 19/32" |
| Diameter(D) inch | 1 13/16" |
| Flutes | 2 |
| m | 1" |
| Material | Carbide Tip |
| Radius | 1/2" |
| Shank(d) | 1/2" |
| Tool No. | 51574 |
| Diameter(D) | 1-13/16" |
|---|---|
| Cutting Height (B) | 1-19/32" |
| Overall Length(L) | 3-1/2" |
| Shank(d) | 1/2" |
| Flutes | 2 |
| Radius(R) | 1/2" |
| M | 1" |
| Max. RPM | 27,500 RPM |
| Style | Bullnose |
| Replacement Bearing | 47714 |
