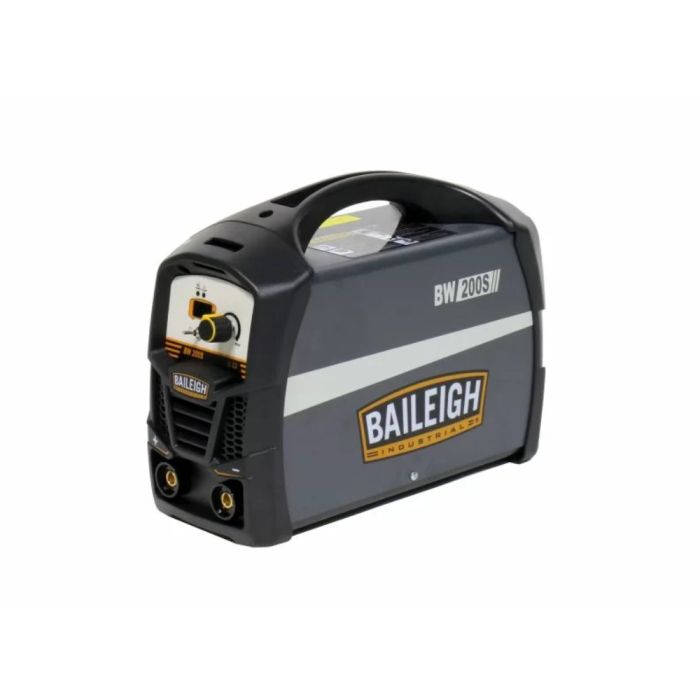

Baileigh Industrial BA9-1021967 BW-200S, 120/230V 200A Dual Voltage Inverter Stick Welder Ships direct from manufacturer
The BW-200S from Baileigh Industrial is an industrial level 200 Amp Arc welder. It features extremely solid construction but remains very portable at only 16 lbs. This BW-200S Industrial welding machine is the ideal choice for a welder working at the job site in during extreme conditions.
Order this SMAW welding machine from Baileigh Industrial today
Questions? Please give us a call at 1-920-654-5815
WARNING: Proposition 65 Warning for California Residents
View Details More Information Manufacturer Baileigh Industrial Condition New UPC 19907600831 Features Portable IGBT inverter stick welder Dual voltage: 120/230V single-phase Thermal overload protected Portable IGBT Inverter stick welder Dual voltage can run on 120 volt or 230-volt single-phase power - High Open Circuit Voltage Intelligent voltage sensing – This welder knows what voltage it is plugged into and (when plugged into 120V) will limit the output of the welder Step-less Current Adjustment - adjustments are infinite and do not “click” between only a few options Thermal Overload Protected, will shut down welding if its temperature is too high - Fan Cooled Anti-Stick / Hot Start - automatically increases output at the beginning of a weld to pre-heat the weld and electrode Arc Force, keeps arc more stable, with less sticking when the electrode is close Lift ARC TIG capable – Torch not included Generator safe and will tolerate large voltage variations Includes electrode holder, ground clamp, 6-50P 250V plug, and adapter to 120V plug Warranty 1 Year
Type Inverter Stick Welder Certification CSA UL Cooling System Fan Cooled Current Draw 200 Amps Duty Cycle 100 77A (120V) / 77A (230V) Efficiency 0.85 Enclosure Protection IP21S Input Power Dual Vage - 120V/230 V 1-Ph Insulation Class H Model Number BW-200S No Load Voltage 78 V (120 V) / 78 V (230 V) Power Factor 0.75 Rated Duty Cycle 100% (120V) / 15% (230V) Rated Input Capacitance 4.4KVA (120V) / 9.2KVA (230V) Rated Input Current 20A (120V) / 40A (230V) Rated Working Voltage 23V (120V) / 28V (230V) Weight 20 lbs Welding Current 15~75A (120V) / 12~200A (230V)
