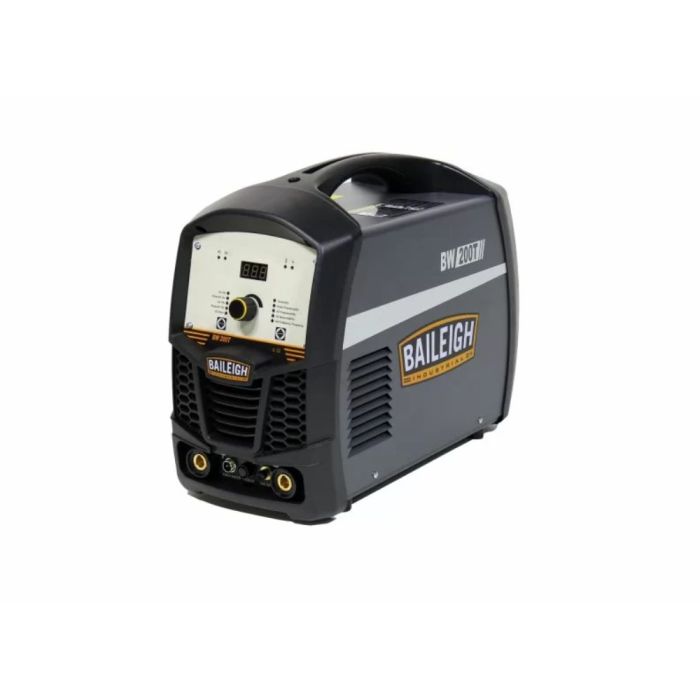

Baileigh Industrial BA9-1021971 BW-200T, 120/230V 200A Inverter Square Welder

SKU
BA9-1021971
$1,319.00
Ships direct from manufacturer ?
Notify me when the price drops
Add to Wish List Add to Compare
Shipping Policy Return Policy

The BW-200T is the ultimate 200amp AC/DC Welding Machine. With variable AC frequency and pulse welding it caters for the more technical aluminum jobs. It features a complete set of control functions to cater for the more demanding jobs and includes a stick function to add to its versatility. The BW-200T is the ideal AC/DC welder for the aluminum welding fanatic. Order this AC/DC TIG welder from Baileigh Industrial today.

Questions? Please give us a call at 1-920-654-5815

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerBaileigh Industrial
ConditionNew
UPC00731325495188
Features
  • 200A AC/DC pulse TIG welder
  • IGBT inverter
  • Remote adjustment
  • Dual voltage: 120/230V single-phase
  • IGBT inverter
  • Dual voltage can run on 120 volt or 230-volt single-phase power
  • AC/DC with Remote adjustment
  • Pulse ratio and frequency
  • Peak / base current
  • Variable AC frequency / balance
  • Thermal overload protected and fan cooled (on demand) - Variable arc force and Generator safe
  • Tig / Stick / Lift Arc
  • 2 /4 step and Pre / Post gas flow and Up / Down Slope
  • Includes TIG Torch, ground clamp, 6-50P 250V plug, adapter to 120V plug, gas hose with regulator, and foot pedal
Warranty1 Year
TypeInverter Square Welder
Balance AC Pulse TIG50%~85% (120V) / 50%~85% (230V)
Balance AC TIG50%~85% (120V) / 50%~85% (230V)
Base Current AC Pulse TIG50% Peak Current (120V) / 50% Peak Current (230V)
Base Current DC Pulse TIG50% Peak Current (120V) / 50% Peak Current (230V)
CertificationCSA UL
Cooling SystemFan Cooled
Current Draw200 Amps
DC TIG Rated Current10A~95A (120V) / 10A~200A (230V)
Duty Cycle AC Pulse TIG40% (120V) / 35% (230V)
Duty Cycle DC Pulse TIG40% (120V) / 35% (230V)
Efficiency0.8
Enclosure ProtectionIP21S
Frequency AC Pulse TIG50Hz~150Hz (120V) / 50Hz~150Hz (230V)
Frequency AC TIG50Hz~150Hz (120V) / 50Hz~150Hz (230V)
Input PowerDual Vage - 120V/230 V 1-Ph
Insulation ClassF
MMA Rated Current20A~65A (120V) / 20A~160A (230V)
Model NumberBW-200T
No Load Voltage65 V (120 V) / 65 V (230 V)
Peak Current AC Pulse TIG20A~95A (120V) / 20A~200A (230V)
Peak Current DC Pulse TIG10A~95A (120V) / 10A~200A (230V)
Power Factor0.8
Pulse Frequency AC Pulse TIG0.2Hz~20Hz (120V) / 0.2Hz~20Hz (230V)
Pulse Frequency DC TIG0.2Hz~200Hz (120V) / 0.2Hz~200Hz (230V)
Rated Current AC TIG20A~95A (120V) / 20A~200A (230V)
Rated Input Capacitance2.4KVA (120V) / 7.1KVA (230V)
Rated Input Current20A (120V) / 31A (230V)
Rated Working Voltage22.6 (120V) / 26.4 (230V)
TIG Arc WayHF (120V) / HF (220V)
Weight64 lbs
