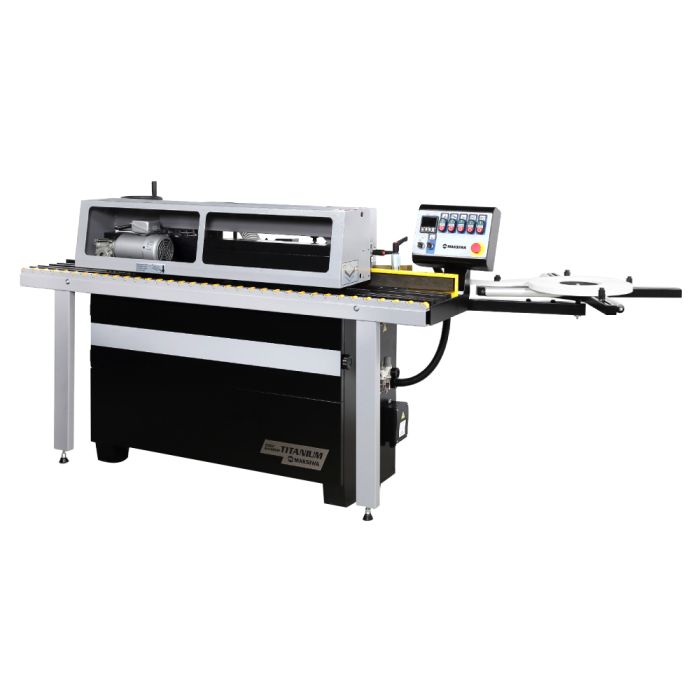

This machine is a master piece of engineering, packet with features that will make your job easier giving you a product finish like never before. Super steady and stable the CBC.T platform is a stainless steel mono-block base. All operating units are easy to be accessed through the upper protection hood. The friction-free worktable feed panels with high-precision and rollers moves the panels through effortlessly and smoothly. All stations are adjusted with a mechanical readout for reference and panel processing is fully automatic with all operating units synchronized.
WARNING: Proposition 65 Warning for California Residents View Details
Machine Performance: The Maksiwa Titanium Automatic Edgebander CBC.T is incredibly versatile, it handles panels up to 45mm thick, automatic feed and spread glue directly on the workpiece and can be adjusted to use edge tape between a thickness of 0.4 and 3 mm
Panel Control: Located on the front of the machine in an ergonomic position. This unit is used to control all of the machine’s functions quickly and intuitively. There you can see and adjust the Digital Glue Temperature Control – shows the desired and current temperature; activate pre-heating and glue pot heating, glue spindle, conveyor belt, front/rear trimming, top/down trimming, and buffing unit
Glue Pot Unit: The glue pot unit is heated rapidly and evenly to maintain the optimal temperature. This is made easy by using the Digital Control, once set it keeps the temperature constant unless in “stand-by” mode which lowers the temperature without turning off the machine, the glue spindle has two pressure rollers allowing the glue to be spread evenly to the panel
Conveyor Belt: With a movement system designed for a perfect finish, moves the panels to be edge through the machine smoothly, providing the very best finish
Buffing Unit: The buffing unit is designed to polish edges and maintain their natural colors. Two independent buffing wheels for cleaning and polishing can be adjusted to a particular angle to maximize its effect for better workpiece finishing and extending buffing wheel service life
Top/Bottom Trimming: The top/bottom trimming units are automatic and manually adjustable. These trimmers consist of high-polish chrome plated copy shoes which ensure a smooth and accurate profile
Dust Collection: The machine can be equipped with centralized dust collector 100mm situated on the main protection of the machine
Machine frame made out of steel, single block base with superior stability
Dual pressure rollers
Automatic belt feed
Friction-free worktable
Top feeder with high-adherence toothed head belt with steel cables inside
