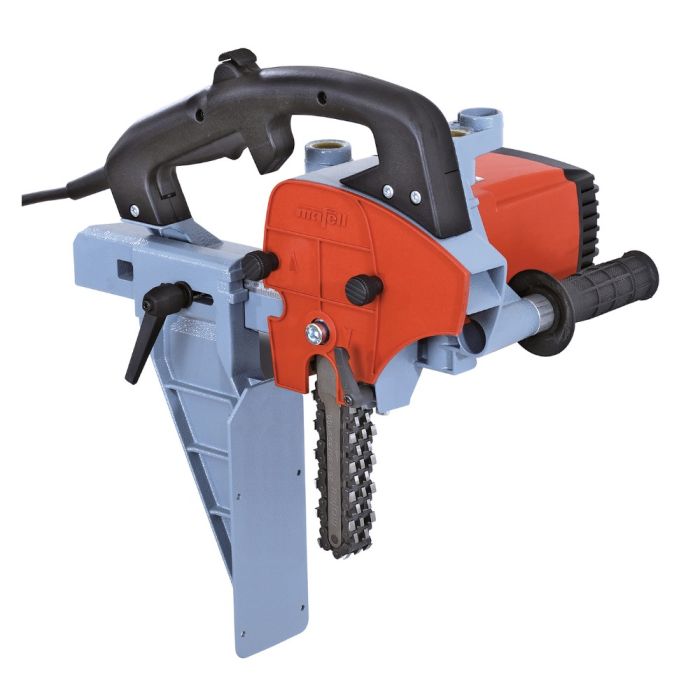

Unique lightweight at only 8.7 kg (19.2 lbs.). Chain mortising without the drag.
The long guide plate has a large adjusting range and permits work on large timber workpieces.
The tensioning system of the LS 103 EC allows fast chain replacement. Even retightening of the chain without removing the chain guard is quick and easy.
Optional accessories include the guide support stand for the LS 103 EC, ideal for precise framing work, particularly indispensable for chain sets of 150 mm (5 7/8 in.)
With the LS 103 EC and the appropriate slot mortising attachment SG 230, SG 400 or SG 500, you can execute slots of up to 500 mm (19 11/16 in.). This is not possible with any other machine on the market
Usage
Tenon cuts of various sizes up to 100 mm (3 15/16 in.) with the LS 103 EC.
The LS 103 EC being operated horizontally.
The LS 103 EC with the guide support stand FG 150 for mortising depths of up to 140 mm.
Dimensions of mortising chains example: 28 x 40 x 100 mm; chain width: 28 mm (1 1/8 in.); hole width: 40 mm (1 9/16 in.); mortising depth: 100 mm (3 15/16 in.)
