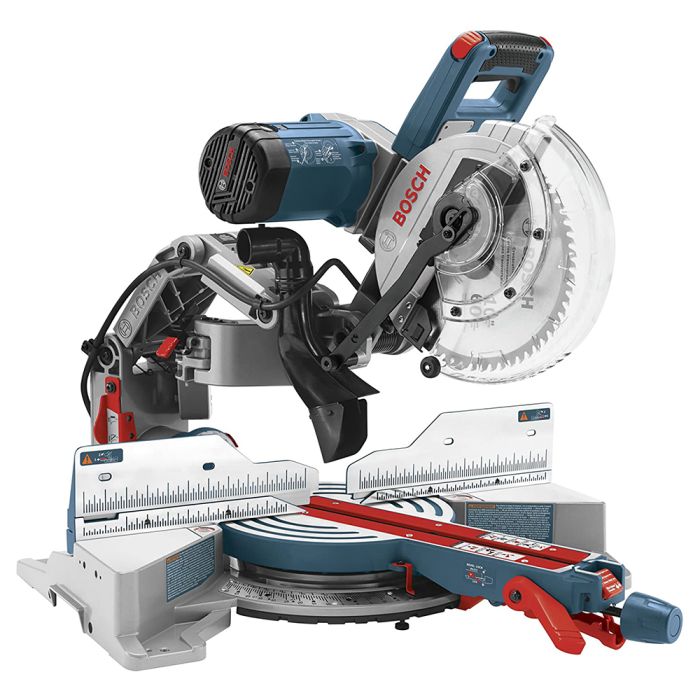

Bosch CM10GD 10" Dual-Bevel Glide Miter Saw ( * In-Store Pickup Only * )

SKU
CM10GD
$699.00
In Stock
Notify me when the price drops
Add to Wish List Add to Compare
Shipping Policy Return Policy
Bosch CM10GD 10" dual-bevel glide miter saw delivers accuracy and cutting control at all angles, as well as durable precision throughout the life of the tool. The innovative axial-glide system provides wider cross-cuts, enhanced alignment and smoother glide and the compact design takes up to 10" less front-to-back workspace than a slide miter saw. With a 15 amp motor providing 4,800 no-load RPM, there is plenty of power. Adjustable miter and bevel detents enable users to make precise common miter and bevel cuts and the override allows for easy angle adjustment. The bevel lock lever and range selector are located safely upfront so users don't have to reach around behind the saw to make a bevel adjustment.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerBosch
ConditionNew
UPC70000346452715
Features
  • Articulated Hinge Arms: Reduce the saw’s front-to-back footprint by up to 10" compared to slide saws with similar capacities
  • Axial-Glide System: Offers more durable precision than side saw rail systems
  • Wide Cutting Capacities: Includes 12" horizontal cut capacity, 5-1/2" vertical baseboard cut capacity against the fence and a 6" crown cut capacity nested against the fence (45 degree spring)
  • Tall Sliding 4-1/4" Fences: For easy bevel set ups and increased crown and base molding capacity
  • Wide 47 Degree Left/47 Degree Right Bevel Capacity: With detents at 0 degree, 33.9 degree, 45 degree left/right for easy setting of the most-common bevel angles
  • Adjustable Miter Detents: Designed to be accurate and durable and includes detents at 0 degree, 15 degree, 31.6 degree, 22.5 degree, 45 degree, 60 degree
  • Push-Button Miter Detent Override: Provides easy-to-access thumb actuated control right up front for fine miter angle adjustment
  • Large easy-to-read uniform bevel and stainless steel miter scales in degrees plus roof pitch angles for more convenient cut setup
  • Category-Best 90 Percent Dust Collection: Optimized for cutting 2x material with a vacuum
  • Ergonomic Ambidextrous Trigger Handle with Soft Grip: Provides comfort for all-day use and a large form-fitting ergonomic handle
Includes
  • 10" 60-Tooth Carbide-Tipped Saw Blade
  • Wrench
  • Work Clamp
  • Dust Bag
  • Vacuum Adapter/Elbow
Amperage15.0 Amps
Electric BrakeYes
Speed (RPM)4,800 RPM
Variable speedNo
WarrantyLimited 1 Year
Blade Diameter 10"
Bevel Angle Range 47 Deg Left and 47 Deg Right
Bevel Stops 0 Deg, 33.9 Deg, 45 Deg and 47 Deg (L/R)
Dust Collection Yes
Electric Motor Brake Yes
Max. Base Molding Against Fence 3 1/4" (5 1/2" from 0 Deg to 47 Deg L)
Max. Crown Molding (38 Degree Spring) Angled Against Fence 5 1/4"
Max. Crown Molding (45 Degree Spring) Angled Against Fence 6"
Max. Cut Capacity - 0 Degree Miter 0 Degree Bevel 3 1/8" x 12" (Can cut 4x12 dimensional lumber when Adjustable Depth Stop is used.)
Max. Cut Capacity - 0 Degree Miter 45 Degree Left Bevel 1 1/2" x 12" (Can Cut 2x12 Dimensional Lumber)
Max. Cut Capacity - 0 Degree Miter 45 Degree Right Bevel 1" x 12" (Can Cut 1x12 Dimensional Lumber)
Max. Cut Capacity - 45 Degree Miter 0 Degree Bevel 3 1/8" x 8" (Can Cut 4x8 Dimensional Lumber When Adjustable Depth Stop is Used.)
Max. Cut Capacity - 45 Degree Miter 45 Degree Left Bevel 1 1/2" x 8" (Can Cut 2x8 Dimensional Lumber)
Max. Cut Capacity - 45 Degree Miter 45 Degree Right Bevel 1" x 8" (Can Cut 1x8 Dimensional Lumber)
Miter Angle Range 52 Deg Left, 60 Deg Right
Miter Detents 0 Deg, 15 Deg, 22.5 Deg, 31.6 Deg, 45 Deg, (Left/Right) 60 Deg, (Right)
Miter Positive Stops 0 Deg, 15 Deg, 22.5 Deg, 31.6 Deg, 45 Deg (Left/Right), 60 Deg (Right)
Voltage 120V
Suitable for Use with Miter Saw Stands - T1B, T4B, GTA3800, Side-Support Extension Bars - MS1238, Crown Molding Stops (Pair) - MS1233, Anti-Static Vacuum Hoses VH1622A and VH1635A (by means of anti-static adapter included with those hoses), VAC008, and most other 22 mm and 35 mm anti-static hoses Other Vacuum Hoses VH1022, VH1035 and VH1635 (by means of VX120 adapter included with those hoses), VAC005 and VAC006 hoses, and most other 22 mm and 35 mm hoses, Adapter for 1-1/4 in and 1-1/2 in. Vacuum Hoses - VAC002 or VAC024, Adapter for 2-1/2 in. Vacuum Hoses - VAC020
Height of Table (Base Feet to Table Surface) 4"
Weight64 lbs
Height 20.5"
Length 32.0"
Width 26.5"
