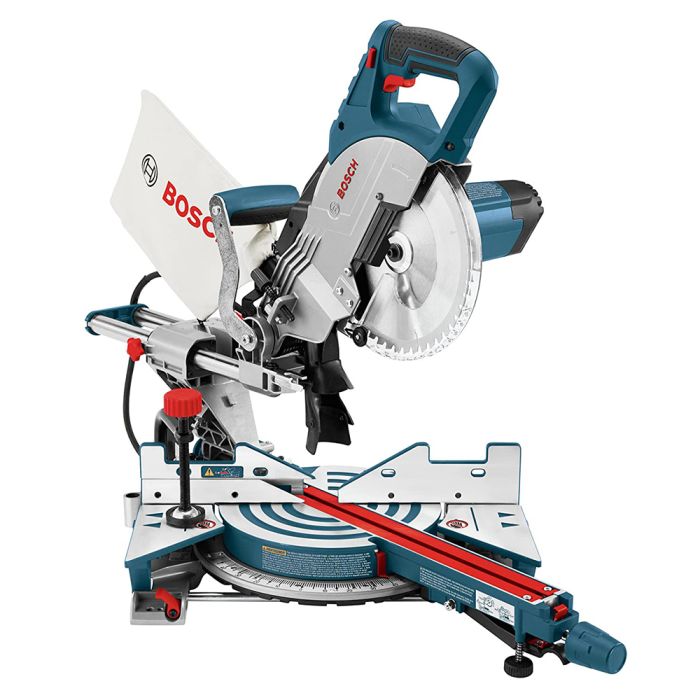

The CM8S 8-1/2" single bevel sliding compound miter saw features a Bosch exclusive design delivering a well-balanced saw with a top carry handle at the center of gravity and weighs only 37 pounds. These features easily provide one-handed portability on and off the job. Accessible controls make it easy to change bevel settings without reaching behind the saw. The integrated expanding work piece supports, large easy to read miter and bevel scales and detent system provides quick and accurate cuts. The CM8S also has the same crosscut capacity (12-1/4 inch) as a 10" miter saw at 30 percent lighter weight.
WARNING: Proposition 65 Warning for California Residents View Details
Easy access bevel controls bevel lock lever and bevel turret stops are located on side of tool for quick and easy adjustments
Integrated expanding base extensions expands up to 29" left to right for additional work-piece support
Large easy-to-read miter and bevel scales uniform marks from 52 degree left to 60 degree right with 10 adjustable miter detents set at most common cuts
Adjustable front stabilizing foot maintains saw stability when performing slide cuts allowing maximum capacity cross cut 12-1/4" at 0 degree, 8" at 45 degree, 2-3/4" upright, 3-1/2 crown
Miter detent override intuitive easy to access thumb-actuated override
Ergonomic ambidextrous trigger handle form fitting handle provides comfort for all day use
Clear lower guard for unobstructed view throughout the cut
Includes
8-1/2" 40T Carbide Tipped Blade
Blade Wrench
Dust Bag Assembly
Toolless Work Piece Clamp
Amperage
12.0 Amps
Electric Brake
No
Speed (RPM)
5,600 RPM
Variable speed
No
Warranty
1 Year
Blade Diameter
8 1/2"
Bevel Angle Range
-2 Deg to 47 Deg
Bevel Stops
0 Deg, 22.5 Deg, 33.9 Deg, 45 Deg
Dust Collection
Yes
Electric Motor Brake
No
Maximum Base Molding Against Fence
2 3/4"
Max. Crown Molding (38 Degree Spring) Angled Against Fence
3 1/2"
Max. Crown Molding (45 Degree Spring) Angled Against Fence
Miter Saw Stands - T1B, T4B, GTA3800, Crown Molding Stops (Pair) - MS1233, Length Stop - MS1234, Anti-Static Vacuum Hoses - VH1622A and VH1635A (by means of anti-static adapter included with those hoses), VAC008, and most other 22 mm and 35 mm anti-static hoses, Other Vacuum Hoses - VH1022, VH1035 and VH1635 (by means of VX120 adapter included with those hoses), VAC005 and VAC006 hoses, and most other 22 mm and 35 mm hoses, Adapter for 1-1/4 in and 1-1/2 in. Vacuum Hoses - VAC002 and VAC024, Adapter for 2-1/2 in. Vacuum Hoses - VAC020
