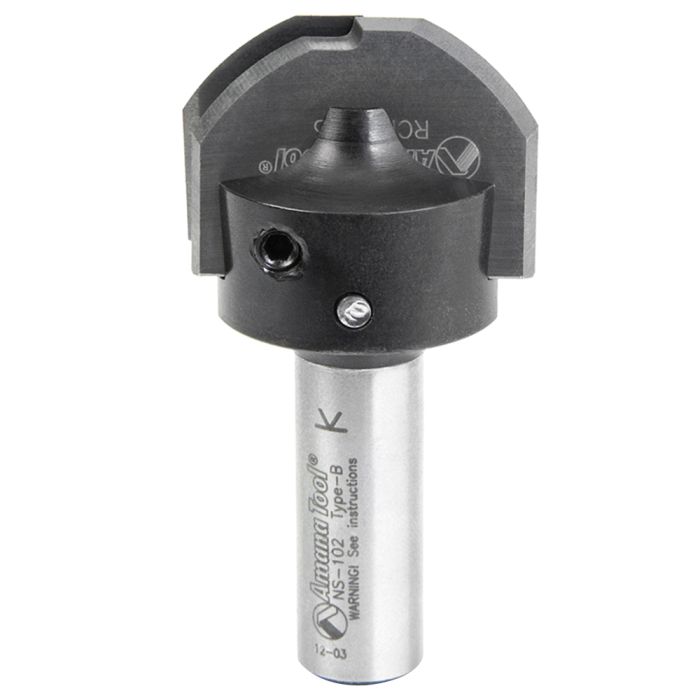

Amana Tool RC-2485 1-11/32" CNC Insert Nova System Cove Raised Panel Router Bit
SKU
RC-2485
$184.48
Ships direct from manufacturer ?
This series of profiles utilizing our Nova Tool body system of interchangeable carbide insert knives are designed to give the appearance of a Raised Panel door in MDF or solid panels. One pass is all that is needed for a simple raised panel look using one of the “Plunge Form” profiles. Replacement knives are MDF Grade Carbide and will last much longer than standard brazed carbide tipped bits.
WARNING: Proposition 65 Warning for California Residents View Details
| Manufacturer | Amana Tool Corp. |
|---|---|
| Condition | New |
| UPC | 73868582485 |
| Features |
|
| Includes |
|
| Application | MDF & Wood Cabinet Doors |
| Replacement Knives | RCK-485 |
| Type | Router Bit |
| Cutter Height(B) | 25/64" |
| Cutting Diameter(D) | 1 11/32" |
| Diameter(D) | 1 3/8" |
| Diameter(D1) | 15/32" |
| Length(L) | 2 5/8" |
| Material | Carbide Tip |
| Overall Length(L) | 2 5/8" |
| Shank | 1/2" |
| Shank(d) | 1/2" |
| Style | Raised Panel |
| Tool Body | NS-102 |
| Tool No. | RC-2485 |
| Diameter(D) | 1-11/32" |
|---|---|
| Cutting Height (B) | 17/64" |
| Overall Length(L) | 2-5/8" |
| Shank(d) | 1/2" |
| Diameter(D1) | 23/64" |
| Replacement Knives | RCK-485 |
| Style | CNC Insert Nova System Cove Raised Panel |
| Radius(R) | 25 mm |
| Max. RPM | 28,000 RPM |
