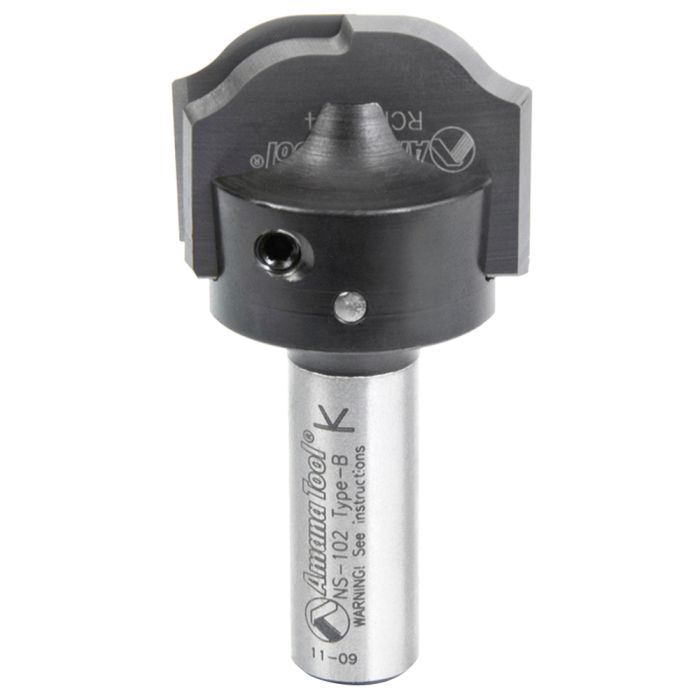

Amana Tool RC-2484 1-7/64" CNC Insert Nova System Ogee Raised Panel Router Bit

SKU
RC-2484
$184.48
Ships direct from manufacturer ?

This series of profiles utilizing our Nova Tool body system of interchangeable carbide insert knives are designed to give the appearance of a Raised Panel door in MDF or solid panels.

One pass is all that is needed for a simple raised panel look using one of the “Plunge Form” profiles.

Replacement knives are MDF Grade Carbide and will last much longer than standard brazed carbide tipped bits.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerAmana Tool Corp.
ConditionNew
UPC73868582484
Replacement KnivesRCK-484
MaterialCarbide Tip
TypeRouter Bit
Diameter (D)1 7/64"
Inner Diameter (D1)7/16"
Radius (R)10 mm
Cutting Height (B)1/4"
Cutting Height (B1)7/64"
Shank Diameter (d)1/2"
Overall Length (L)2 5/8"
StyleOgee Raised Panel
Radius (R1)8 mm
Feed rate Inch/Min / Speed rate RPM / Chip load Inch/Rev120" - 280" / 24,000 / 0.005" - 0.011"
Maximum Speed (RPM)28,000 RPM
