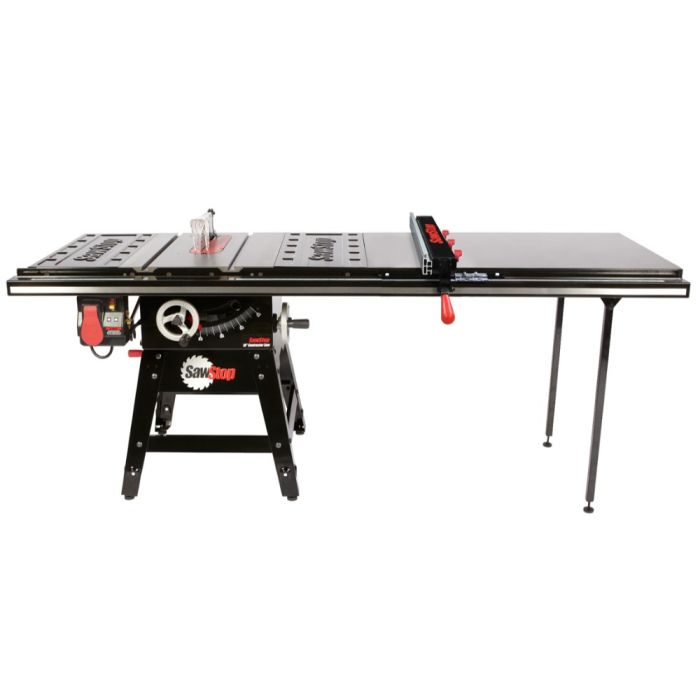

SawStop CNS175-ATGP52, 1.75HP 52" TGAdvance Professional Cabinet Saw
The SawStop Contractor Saw offers versatility and safety.
52-INCH T-GLIDE ADVANCE FENCE ASSEMBLY: The 52-inch T-Glide Advance Fence & Rail are made of heavy-gauge steel for sure lockdown and reliably square cutting for years without deflection. The multi-function aluminum fence face provides the ability to use in three positions, with a dovetailed groove for attaching accessories and jigs.
CONFIGURABILITY: Over 150 unique configurations, makes the Contractor Saw the most configurable SawStop saw. Adding a mobile base, sliding crosscut table or router table, are just a few of the ways to make this your ideal saw.
UNIVERSAL PERFORMANCE: The Contractor Saw offers versatility, reliability and safety for a variety of users. The cast iron table top (Cast Iron Wing Assembly, CNS-CIWA, sold separately) creates a better-than-hybrid performance in the shop at an affordable price.
SAWSTOP PATENTED SAFETY SYSTEM: Stops a spinning blade on contact with skin. The blade stops in less than 5 milliseconds, and drops below the table, minimizing a potentially life-altering injury to a mere scratch.
RELIABILITY: The Control Box houses the on-off switch, power paddle, and on-board computer, and constantly checks that all systems are working to reliably keep you safe.
UNMATCHED QUALITY: The trunnion and arbor are built for precision, strength and stability. Poly v-ribbed belts reduce vibration and help ensure a great cut. Table flatness is measured diagonally at 0.010” maximum gap.
| Manufacturer | SawStop |
|---|---|
| Condition | New |
| Features |
|
| Includes |
|
| Video |
| Type | Cabinet Saw |
|---|---|
| 52" Rip Capacity | CNS175-ATGP52: 52" T-Glide Advance Fence Assembly |
| Overall Saw Dimensions 52 in | 85-1/4" W X 45" D X 34 3/4" H |
| Motor Option(S) (60hz Tefc) | 1.75 HP Available |
| Motor Configuration(S) | Cns175: 1.75 Hp, 120v, 14 a (User Config. To 220V W/optional Kit Available for Purchase). |
| Saw Body Footprint | 25 3/4" W X 27" D (W/stand Installed) |
| Cast Iron Table (W/ Extension Wings) | 44″ W X 27″ D |
| Extension Table 52 in | 40-1/8″ W X 27″ D |
| Cast Iron Table | 20″ W X 27″ D |
| Extension Wings | 12″ W X 27″ D Stamped Steel (Optional Cast Iron for Purchase) |
| Weights - (Optional Cast Iron Wings) | 35 Lbs Each |
| Weights - Table Saw Only | 225 Lbs |
| Blade | 40-tooth, Prof. Grade, 5/8″ Arbor |
| Blade Tilt | Left |
| Blade Plate Thickness | 0.078″ (2mm) |
| Max. Depth of Cut, Blade at 45 Deg | 2 1/4″ |
| Max. Rip, Right of Blade (W/52” Fence) | 52" |
| Blade Diameter | 10" |
| Blade Kerf | 0.118″ (3mm) |
| Max. Depth of Cut, Blade at 0 Deg | 3-1/8″ |
| Max. Rip, Left of Blade (W/36” or 52” T-glide Fence) | 12" |
| Dado Diameter | 8" (Requires Dado Brake Cartridge & Insert) |
| Arbor Diameter at Blade | 5/8" |
| Second Bearing Size | 52mm OD X 25mm ID |
| Table Behind Blade (Max. Elevation) | 7 1/8 |
| Table Flatness Measured Diagonally | 0.016″ Maximum Gap |
| Dado Max. Width | 29/32” |
| Main Bearing Size | 62mm OD X 30mm ID |
| Table in Front of Blade (Max. Elevation) | 10-5/8" |
| Arbor Runout | 0.001″ Maximum Allowable Runout |
| Blade Alignment With Miter Slot | 0.010″ Maximum Displacement |
| Alignment Between Splitter and Blade | 0.010″ Maximum Difference |
| Miter Slots Center | 11-1/8″ Center-to-center |
| Deviation of Miter Gauge Indexing Stops From Actual | ±0.25 Deg |
| Miter Slots T-shaped | 3/4″ at Top, 1″ at Bottom, 3/8″ Deep |
| Miter Slots Info | 5-1/2″ (Arbor Flange to Center of Right Slot) |
| Dust Collection Port Diameter | 4" |
| Blade Guard | Standard Polycarbonate, Extends 1″ Right of Blade (Opt Dust Guard for Purchase) |
| Hand Wheels | 6″ Diameter, Cast Alum. W/ Abs Handle |
| Riving Knife / Splitter Thickness | 0.090" (2.3 Mm) |
| Insert | Zero Clearance, Phenolic Core, Melamine Surfaces |
| Belts | V-ribbed Belt – Static Dissipative |
