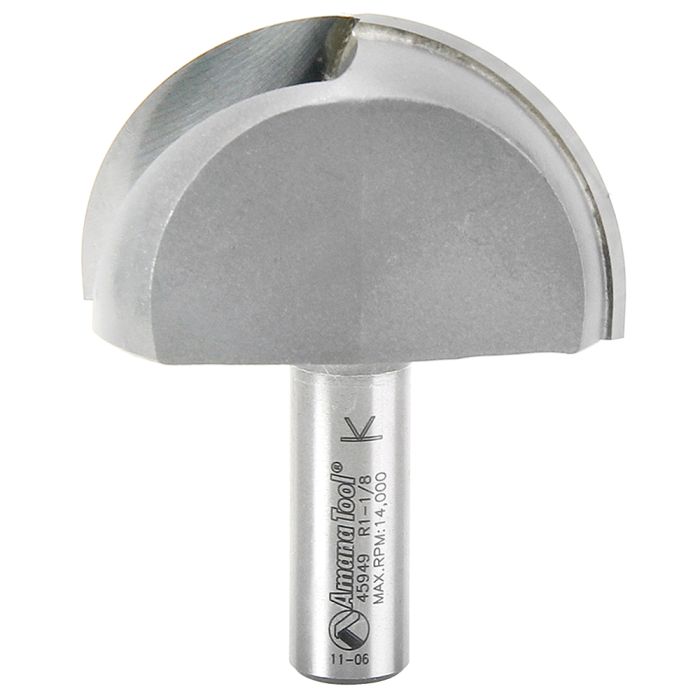

Amana Tool 45949 2-1/4" Carbide Tipped Extra Deep Core Box Router Bit
SKU
45949
$153.29
Ships direct from manufacturer ?
Cut much deeper flutes than possible with a regular core box bit. Perfect for making flutes on CNC machines.
WARNING: Proposition 65 Warning for California Residents View Details
| Manufacturer | Amana Tool Corp. |
|---|---|
| Condition | New |
| UPC | 73868545949 |
| Features |
|
| Application | High Density Urethane (HDU Board), Laminate, MDF, Softwood/Hardwood, Veneered Plywood |
| Type | Router Bit |
| Ball Bearing | No |
| Cutter Height(B) | 1 1/4" |
| Cutting Diameter(D) | 2 1/4" |
| Diameter(D) | 2 1/4" |
| Flutes | 2 |
| Length(L) | 2 3/4" |
| Material | Carbide Tip |
| Max. RPM | 14,000 RPM |
| Overall Length(L) | 3" |
| Radius(R) | 1 1/8" |
| Shank | 1/2" |
| Shank(d) | 1/2" |
| Tool No. | 45949 |
| Diameter(D) | 2-1/4" |
|---|---|
| Cutter Height(B) | 1-1/4" |
| Shank(d) | 1/2" |
| Overall Length(L) | 2-3/4" |
| Flutes | 2 |
| Style | Core Box |
| Radius(R) | 1-1/8" |
| Max. RPM | 14,000 RPM |
