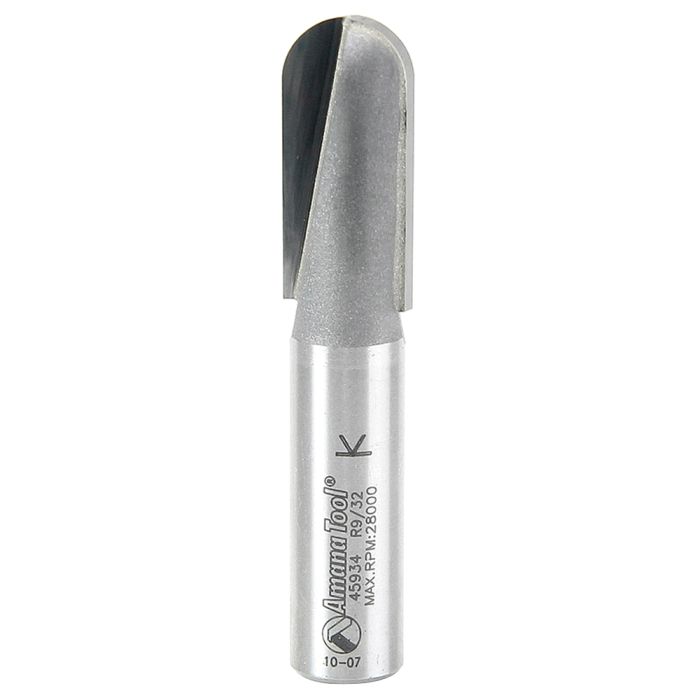

Amana Tool 45934 9/16" Carbide Tipped Extra Deep Core Box Router Bit
Ships direct from manufacturer
Cut much deeper flutes than possible with a regular core box bit. Perfect for making flutes on CNC machines.
WARNING: Proposition 65 Warning for California Residents
View Details More Information | Manufacturer | Amana Tool Corp. |
|---|
| Condition | New |
|---|
| UPC | 73868585934 |
|---|
| Application | For Cutting High Density Urethane (HDU Board), Laminate, MDF, Softwood/Hardwood, Veneered Plywood |
|---|
| Flutes | 2 |
|---|
| Material | Carbide Tip |
|---|
| Type |
Router Bit |
| Diameter (D) |
9/16" |
| Radius (R) |
9/32" |
| Cutting Height (B) |
1 1/4" |
| Shank Diameter (d) |
1/2" |
| Overall Length (L) |
2 7/8" |
| Style |
Extra Deep Core Box |
| Maximum Speed (RPM) |
28,000 RPM |
| Feed Rate IPM* / Chip Load Per Tooth (Softwood) |
250" / 0.0069" |
| Feed Rate IPM* / Chip Load Per Tooth (Hardwood) |
110" / 0.0032" |
| Feed Rate IPM* / Chip Load Per Tooth (MDF) |
230" / 0.0064" |
| Feed Rate IPM* / Chip Load Per Tooth (Plywood) |
140" / 0.0038" |
