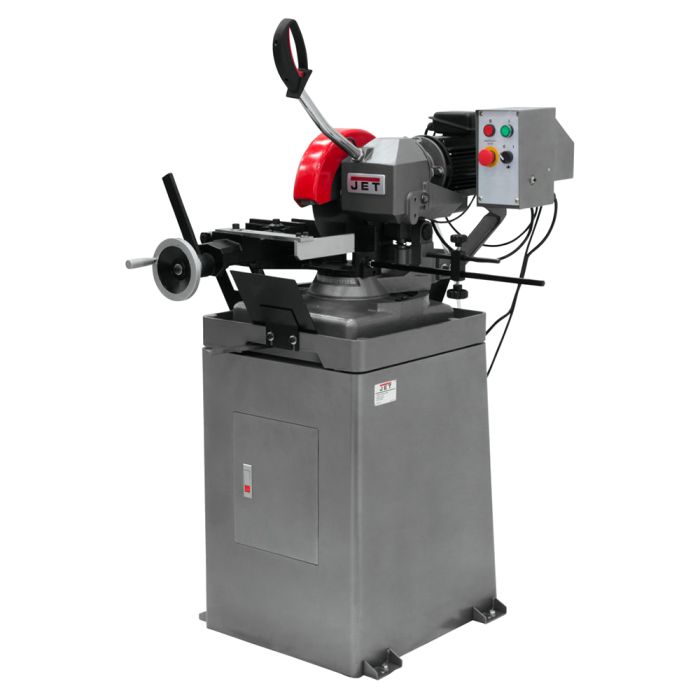

JET 414228 CS-275 Ferrous Manual Cold Saw, 1PH Ships direct from manufacturer
Usually ships in 24-48 hours
JET Cold saws deliver clean, burr-free cuts and offer machine shop and fabrication professionals a list of features and standard design characteristics that you’ve come to expect from JET.
WARNING: Proposition 65 Warning for California Residents
View Details More Information Manufacturer Jet Condition New UPC 73132526613 Features 275 mm (10 inch) Ferrous Cold Saw for steel, stainless and tough to cut alloys Blade drive reduction gearbox operates in an oil bath for increaded durability Spring loaded whole hand trigger starts or stops the sawing process for easy smooth cutting and increased user safety Heavy-Duty cast iron frame base with easy access storage provides a stable cutting platform Two-piece cast iron blade guard system permits quick and easy blade changes without removing the guards Flood Coolant system with a 1 1/3 Gallon coolant reservoir and pump with flow control system extends blade life Quick clamping cam-action vise with adjustable gib and material support bar for burr-free cutting operations Quick tension and release mitering capabilities with stops at 45 degree right, 45 degree left Hardened and ground direct drive worm shaft and bronze worm wheel transmits maximum torque to the saw blade Fully adjustable material depth stop for sawing repeatability and increased production PDFs Horsepower 1.5 HP Stationary type Ferrous
Motor Phase 1Ph Speed (RPM) 54 RPM Tubing Round (at 45 Degree) 3 19/64" Tubing Round (at 90 Degree) 3 19/64" Tubing Square (at 45 Degree) 2 3/16" x 2 3/16" Tubing Square (at 90 Degree) 2 1/2" x 2 1/2" Tubing Rectangle (at 45 Degree) 2 3/16" x 2" Tubing Rectangle (at 90 Degree) 3 3/32" x 2" Solid Round (at 45 Degree) 3 19/64" Solid Round (at 90 Degree) 3 19/64" Solid Square (at 45 Degree) 2 3/16" x 2 3/16" Solid Square (at 90 Degree) 2 1/2" x 2 1/2" Solid Rectangle (at 45 Degree) 2 3/16" x 2" Solid Rectangle (at 90 Degree) 3 3/32" x 2" Blade Size 275 mm x 32 mm x 2 mm Maximum Vise Opening 4" Voltage 115 V Length 40" With 39" Height 72"
