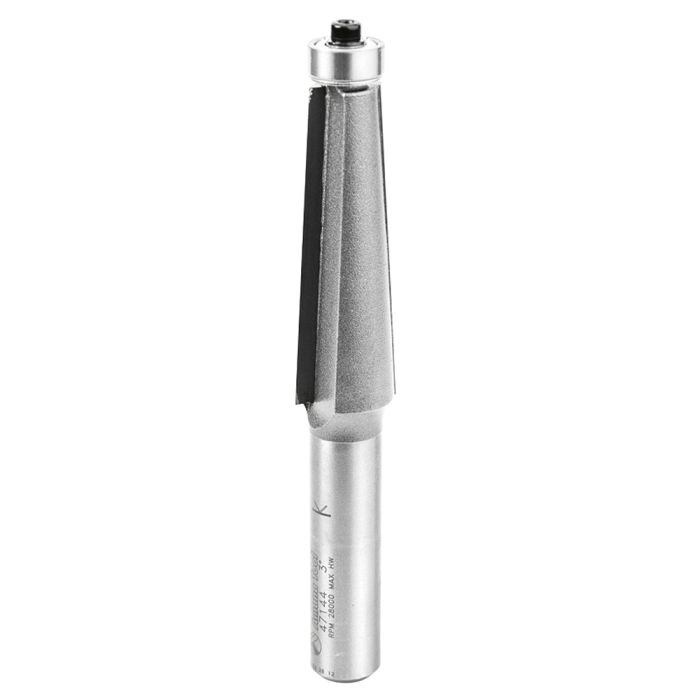

Amana Tool 47144 3/4" Carbide Tipped Patternmakers Router Bit
SKU
47144
$83.72
Ships direct from manufacturer ?
This slightly tapered bit is specifically designed for wood patternmaking, especially wood vacuum-forming molds where draft (3 degree , 5 degree and 7 degree taper) is required for releasing the styrene or other plastic from the mold. It can be used to bevel the leading edge on a door. Not for use in CNC machines.
WARNING: Proposition 65 Warning for California Residents View Details
| Manufacturer | Amana Tool Corp. |
|---|---|
| Condition | New |
| UPC | 73868547144 |
| Type | Router Bit |
| Angle(a°) | 3 Deg |
| Ball Bearing | Yes |
| Cutter Height(B) | 2 1/8" |
| Diameter(D) | 3/4" |
| Diameter(D1) | 1/2" |
| Flutes | 2 |
| Material | Carbide Tip |
| Shank(d) | 1/2" |
| Tool No. | 47144 |
| Diameter(D) | 3/4" |
|---|---|
| Cutting Height (B) | 2-1/8" |
| Overall Length(L) | 4-5/8" |
| Shank(d) | 1/2" |
| Angle(a°) | 3 Deg |
| Diameter(D1) | 1/2" |
| Flutes | 2 |
| Max. RPM | 28,000 RPM |
| Style | Patternmakers |
