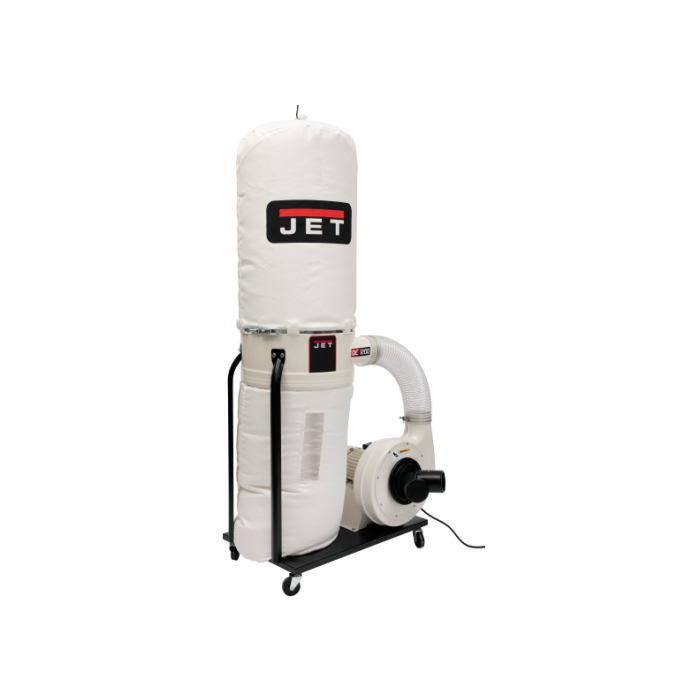

JET 710703K DC-1200VX-BK3 230/460V Dust Collector 30-Micron Bag Filter Kit, 2HP/3Ph

SKU

JT9-710703K

$945.00

Ships direct from manufacturer

FREE SHIPPING! ON ORDERS OVER $99

Notify me when the price drops

Product Description
Features/Specifications
Reviews

Product Description

The JET DC-1100VX features the exclusive Vortex Cone which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The high air velocity (CFM) stands up to any competitive specifications and the industrial controls are designed for years of durable use. Collection bags have a snap ring for fast installation and removal. Casters offer maneuverability within the shop.

WARNING: Proposition 65 Warning for California Residents View Details

Features/Specifications

More Information
Manufacturer	Jet
Condition	New
Features	Vortex Cone improves chip separation and collector bag packing efficiency Eliminates premature filter clogging for sustained performance Single-stage design for economical and quiet operation Industrial controls designed for years of trouble-free use Quick-connect collection bags with elastic band for fast, easy installation and removal High air velocity (CFM) design stands up to any competitive specifications Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty Includes four casters for maneuverability and total portability
PDFs	Brochure
Horsepower	1.5 HP
Motor Phase	1 Ph
Stationary type	Bag

Motor Voltage	230/460V
Prewired Voltage	230V
Number of Air Inlets	1 at 6", 2 at 4"
1-Hose Connection Diameter	6"
2-Hoses Connection Diameter	4"
Air Flow at 4"	1200 CFM
Velocity at 4"	13,745 FPM
Static Pressure	11 1/2 W
Efficiency	30 Micron
Filter Bag/Canister Length	32"
Collection Bag Capacity (Cu. Ft.)	5 3/10'
Collection Bag Length	29"
Bag Diameter	20"
Impeller Material	Steel
Impeller Diameter	12"
Sound Rating	80 - 85 Db
Amperage	6/3 Amps
