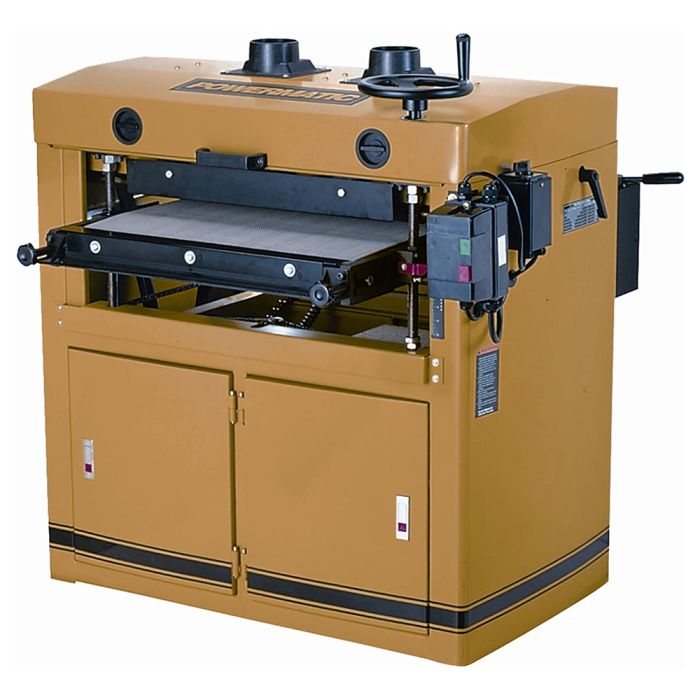

Powermatic 1791290 DDS225 230V 25" Dual Drum Sander, 5HP/1Ph

SKU
PM9-1791290
$6,984.00
Ships direct from manufacturer ?
Finally, a production class Dual Drum Sander that is loaded with features. This machine features a 5HP motor to power the twin poly V-belts. The dual steel drums have a hard durometer rubber coating to assure a flat, mar free finish. Independently adjustable rear drum makes fine tuning easy. A heavy cast iron table incorporates four solid jackscrews with chain drive timing to keep it level at all times. The heavy-duty poly conveyor belt provides a positive grip on the stock. The 1/4HP feed motor is coupled to a two-speed forward/reverse gearbox that will sand 8 and 12 surface feet per minute. The heavy steel cabinet provides years of vibration free sanding, with plenty of storage space underneath.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerPowermatic
ConditionNew
UPC66275546429
Features
  • Dual drum head for superior finish
  • Two-speed gearbox for wide range of sanding projects
  • Forward/reverse conveyor belt grips stock evenly
  • Independently adjustable rear drum for fine tuning
  • Hard durometer rubber coating on steel drums provides flat, smooth finish
  • Full size cast iron table for solid support
  • Dual dust ports with directional baffles for more efficient dust removal
PDFs

Whitepaper

Manual

Horsepower5 HP
Motor Phase1 Ph
Stationary typeDrum
Warranty

5 Year

Recommended Circuit Size40 Amps
Motor Voltage230 V
Prewired Voltage230 V
Dust Port Outside DiameterTwo at 4"
Dust Collection Minimum CFM Required (CFM)600 CFM
Wiring RemarksMagnetic Switch / Must purchase DDS237-322B for 460V operation
Minimum Board Thickness1/32"
Minimum Board Length9"
Maximum Board Width25"
Maximum Board Thickness5 1/4"
Conveyor Speed (FPM)8 and 12 FPM
Conveyor Motor1/4 HP
Drum Diameter6"
Drum Speed (RPM)1,700 RPM
Number of Sanding Drums2"
Drum Length25"
