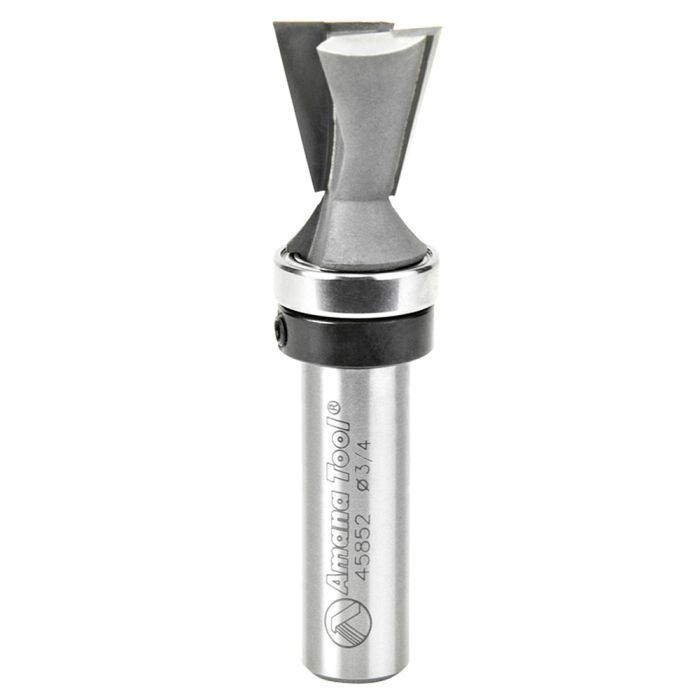

Amana Tool 45852 3/4" Carbide Tipped Dovetail Router Bit
SKU
45852
$49.92
Ships direct from manufacturer ?
This dovetail bit has a shank-mounted ball bearing guide for routing dovetail slots following a template and pattern routing. The template must be mounted between the workpiece and the router. With a handheld router, the template must be on top of the workpiece. With a table-mounted router, the template must be underneath the workpiece. For pattern cutting or jigs.
WARNING: Proposition 65 Warning for California Residents View Details
| Manufacturer | Amana Tool Corp. |
|---|---|
| Condition | New |
| UPC | 73868545852 |
| Includes |
|
| Replacement Bearing | 47721 |
| Replacement Collar | 47739 |
| Type | Router Bit |
| Angle(a°) | 14 Deg |
| Ball Bearing | Upper |
| Cutter Height(B) | 3/4" |
| Diameter(D) | 3/4" |
| Flutes | 2 |
| Material | Carbide Tip |
| Overall Length(L) | 3" |
| Shank(d) | 1/2" |
| Tool No. | 45852 |
| Diameter(D) | 3/4" |
|---|---|
| Cutting Height (B) | 3/4" |
| Overall Length(L) | 3" |
| Shank(d) | 1/2" |
| Flutes | 2 |
| Replacement Bearing | 47721 |
| Replacement Collar | 47739 |
| Angle(a°) | 14 Deg |
| Style | Dovetail |
