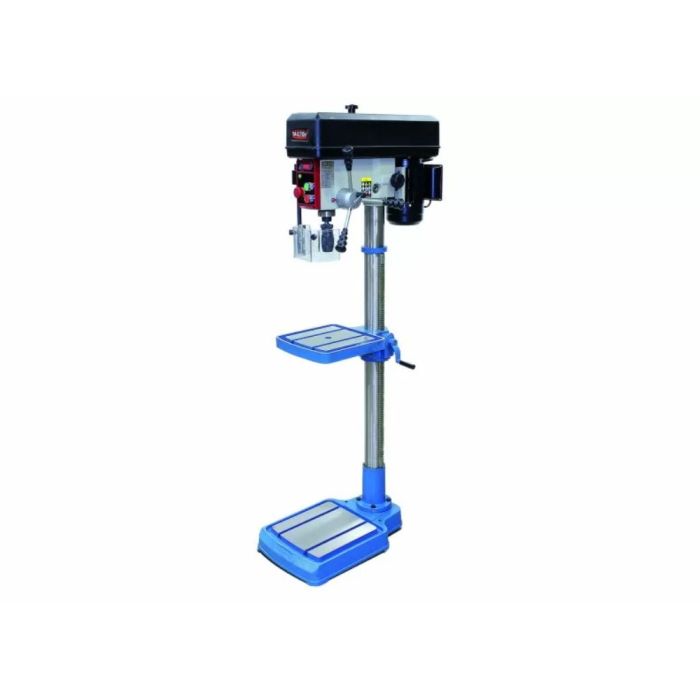

Baileigh Industrial BA9-1022128 DP-1000E, 15-1/2" Belt Drive Drill Press Ships direct from manufacturer
This economical belt driven drill press runs smoothly even at full capacity - the DP-1000E is a 15-1/2" drill press with an MT2 Taper that lets you run tooling at the proper speed to fit your application with its 5 speed pulley configuration which helps extend tooling life.
Questions? Please give us a call at 1-920-654-5815.
WARNING: Proposition 65 Warning for California Residents
View Details More Information Manufacturer Baileigh Industrial Condition New UPC 00731325496130 Features 110V 1/2 hp motor. Belt-driven drill press. MT2 Taper 1” steel maximum capacity. .5 hp motor requires 110 volt power and will work at any shop or site. Belt driven head drills a maximum capacity of 1” steel. 5 speeds in the range from 250 to 2900 rpm to suit your application. 3-1/8" steel column eliminates flexing even when drilling at full capacity. Rigid cast iron base and table add strength to the drill’s structure. Includes a safety shield around the drill head to protect you. Baileigh backs this drill press machine with a 1-year parts warranty and lifetime technical support by phone from our experienced team. Horsepower 0.5 HP Warranty 1 Year
Type Drill Press Base Dimensions 23" x 16" Base Size 23" x 16" Certification CE Chuck Size B-16 1-16mm Keyless Chuck, MT2 to B16 Arbor, Drift Key Column Diameter 3-1/8" Distance From Spindle To Base 47-1/2" Drilling Capacity Mild Steel 1" Input Power 110 V Model Number DP-1000E Number of Spindle Speeds 5 Quill Diameter 2" Range of Spindle Speeds (RPM) 250, 700, 1150, 1900, & 2900 RPM Speeds (RPM) 250, 700, 1150, 1900, & 2900 RPM Spindle Distance to Table (Max.) 5-1/2" Min. To 35-1/2" Max. Spindle Taper MT2 Spindle Travel 3" Swing 15-1/2" Table Material Cast Iron Table Size 12-1/2" x 12-1/2" Table Tilt 360 Deg Table T-Slot 1/2" Weight 290 lbs
