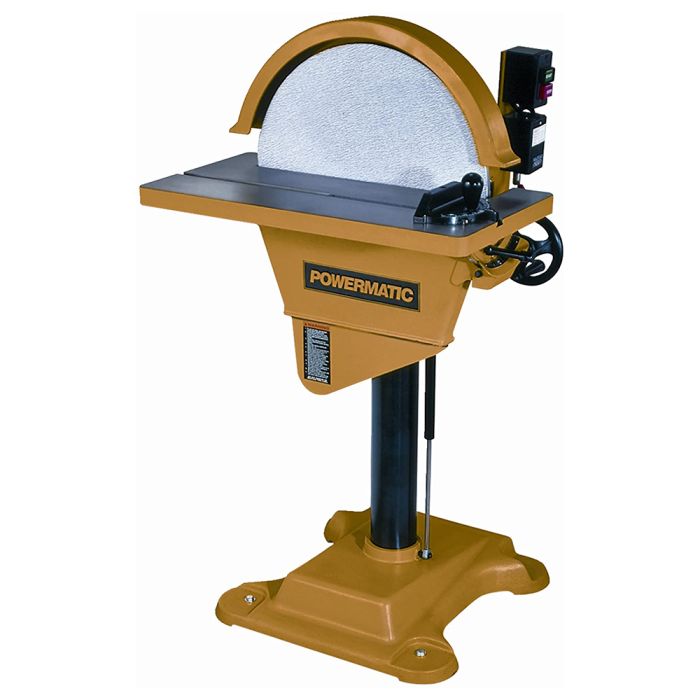

Powermatic 1791276 DS20 230V 20" Disc Sander, 2HP/1Ph

SKU
1791276
$3,199.99
Ships direct from manufacturer?
The Powermatic DS20 20 inch Disc Sander is ideal for the professional or serious home woodworking shop. It has direct drive from motor to disc for maximum efficiency, with a hand activated brake for quick stoppage of disc. The DS20 sander has an extra large sanding surface, adjustable tilting work table and sturdy cast iron base. The swing away guard makes changing abrasive discs quick and easy.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
Manufacturer Powermatic
Condition New
UPC 66275529706
Features
  • 20 inch sanding disc for larger capacity
  • The disc brake slows the machine quickly and will activate immediately to stop machine in an emergency
  • Direct drive from motor to disc for maximum efficiency
  • Forward and reverse switch for additional usage
  • Tilting table allows bevel sanding
  • Miter gauge for angle sanding
PDFs

Manual

Horsepower 2 HP
Motor Phase 1 Ph
Size (Inch) 20"
Stationary type Disc
Warranty

5 Year

Recommended Circuit Size30 Amps
Motor Voltage230 V
Prewired Voltage230 V
Motor Current14 Amps
Dust Port Outside Diameter4"
Dust Collection Minimum CFM Required (CFM)600 CFM
Disc Table Size Length10 1/2"
Disc Table Size Width27 1/2"
Disc Table Tilt30 Up, 45 Down Deg
Disc Speed (RPM)1,720 RPM
