Powermatic 1791264 DS-20 230V/460V 20" Disc Sander, 3HP/3Ph

SKU
PM9-1791264
$3,959.00
Ships direct from manufacturer?

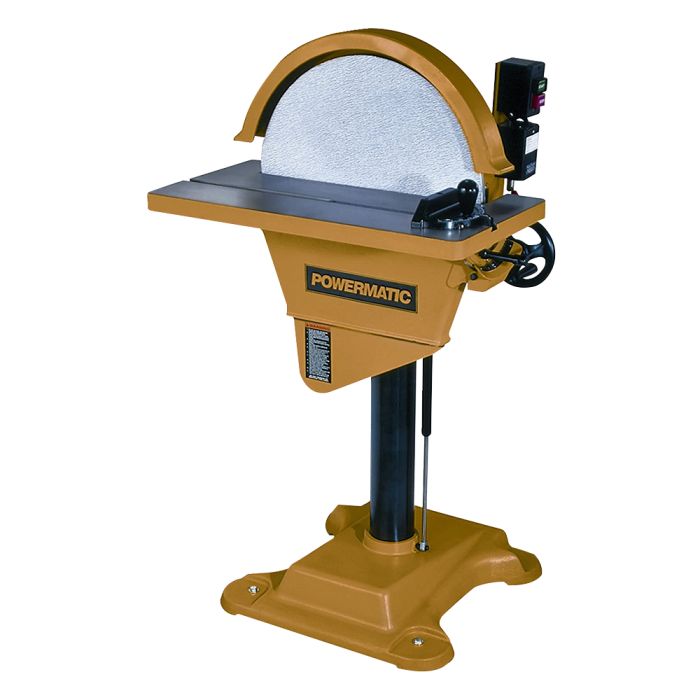

The Powermatic DS20 20 inch Disc Sander is ideal for the professional or serious home woodworking shop. It has direct drive from motor to disc for maximum efficiency, with a hand activated brake for quick stoppage of disc. The DS20 sander has an extra large sanding surface, adjustable tilting work table and sturdy cast iron base. The swing away guard makes changing abrasive discs quick and easy.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerPowermatic
ConditionNew
UPC66275529700
Features
  • 20 inch sanding disc for larger capacity
  • The disc brake slows the machine quickly and will activate immediately to stop machine in an emergency
  • Direct drive from motor to disc for maximum efficiency
  • Forward and reverse switch for additional usage
  • Tilting table allows bevel sanding
  • Miter gauge for angle sanding
PDFs
Horsepower3 HP
Motor Phase3 Ph
Size (Inch)20"
Stationary typeDisc
Warranty

5 Year

Motor Voltage230/460 V
Prewired Voltage230 V
Recommended Circuit Size20/15 Amps
Dust Port Outside Diameter4"
Dust Collection Minimum CFM Required (CFM)600 CFM
Disc Table Size Length10 1/2"
Disc Table Size Width27 1/2"
Disc Table Tilt30 Up, 45 Down Deg
Disc Speed (RPM)1,720 RPM
