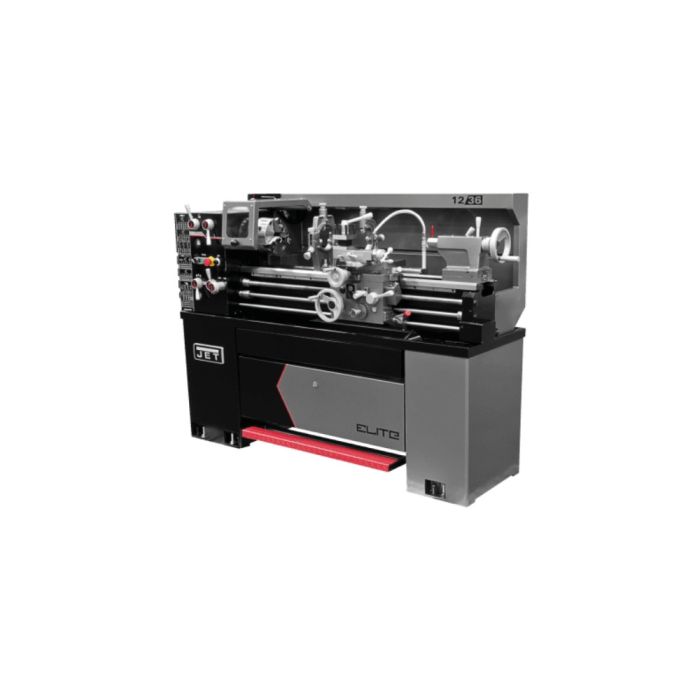

Jet JT9-892306 E-1236VS, Lathe with ACU-RITE 203 DRO, Taper Attachment and Collet Closer

SKU

JT9-892306

$25,959.00

Ships direct from manufacturer

Notify me when the price drops

Product Description
Features/Specifications
Reviews

Product Description

Compact, powerful, perfection. Elite EVS lathes pack large features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring certified Meehanite castings, an electro-magnetic brake, three jaw chuck, ball bearing-mounted steady and follow rests, and CNC Style Lighting with enclosed splash guard, these lathes are truly Elite! CSA/CUS Certified.

WARNING: Proposition 65 Warning for California Residents View Details

Features/Specifications

More Information
Manufacturer	Jet
Condition	New
UPC	00731325282238
Features	4-Position Carriage Stop Chuck guards are standard equipment on all ELITE lathes for increased safety Front facing chip pan allows easy chip removal from the front of the machine Hardened and ground gears in headstock reduce vibration and deflection Integrated locking tool cabinet in stand on 12" Lathe Inverter drive system provides infinitely variable spindle speeds LED RPM readout allows for precise turning speeds Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM
Horsepower	2 HP
Motor Phase	3 Ph
Warranty	3 Years

Type	Lathe with ACU-RITE 203 DRO
Compound Slide Travel	3-1/2"
Drive	EVS
Length of Gap	9-1/2"
Maximum Tool Size	1/2" x 1/2"
Model Number	E-1236VS
Number of Inch Threads	34
Number of Longitudinal and Cross Feed Rates	50
Number of Metric Threads	33
Overall Dimensions (L x W x H)	71" x 30" x 60"
Range of Cross Feeds (IPR)	0.0005 - 0.015 IPR
Range of Inch Threads (TPI)	2 - 56 TPI
Range of Longitudinal Feeds (IPR)	0.0016 - 0.046 IPR
Range of Metric Threads	0.5 - 12
Range of Spindle Speeds (RPM)	0 - 2,000 RPM
Size	12" x 36"
Spindle Bore	1-9/16"
Spindle Mount	D1-4
Spindle Taper with Sleeve	MT-5
Steady Rest Capacity (In.)	1/4" - 2-1/2"
Style	Elite EVS
Swing Over Bed	12"
Swing Over Cross Slide	7-5/16"
Swing Through Gap	17-1/2"
Tailstock Spindle Travel	4"
Taper in Tailstock Spindle	MT-3
Weight	1212 lbs
Width of Bed	7-1/2"
Motor Voltage	230 V
