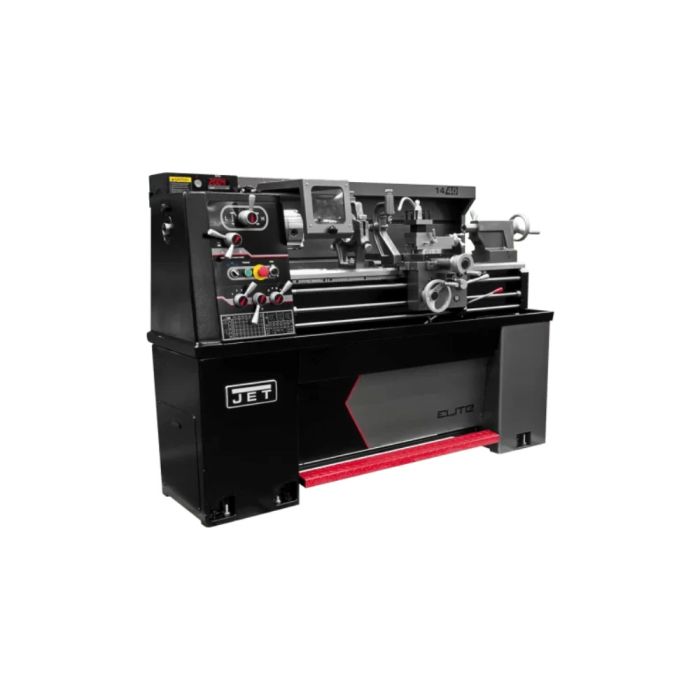

Jet JT9-892420 E-1340VS, Lathe with Newall DP700 DRO and Taper Attachment Ships direct from manufacturer
Compact, powerful, perfection. These lathes have a compact footprint and feature certified Meehanite castings, an electromagnetic brake, 3-jaw chuck, ball bearing-mounted steady and follow rests, and CNC-style lighting with enclosed splash guard. The two-speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM. Perfect for schools, small shops, and engineering labs, these lathes are CSA/CUS Certified and truly are Elite!
WARNING: Proposition 65 Warning for California Residents
View Details More Information Manufacturer Jet Condition New UPC 00731325282641 Features 4-Position Carriage Stop Chuck guards are standard equipment on all ELITE lathes for increased safety Front facing chip pan allows easy chip removal from the front of the machine Hardened and ground gears in headstock reduce vibration and deflection Heavy-duty stand with full length foot brake Inverter drive system provides infinitely variable spindle speeds LED RPM readout allows for precise turning speeds Overload clutch at feed shaft prevents the carriage from crashing into the chuck Steady Rest-Ball Bearing Variable spindle speeds Horsepower 3 HP Motor Phase 3 Ph Warranty 3 Years
Type Lathe with Newall DP700 DRO Amperage Draw @ 230V 3Ph 19 A Compound Slide Travel 3-1/2" Drive EVS Length of Gap 9" Maximum Tool Size 5/8" x 5/8" Model Number E-1340VS Motor Voltage 230 V Number of Inch Threads 40 Number of Longitudinal and Cross Feed Rates 80 Number of Metric Threads 22 Overall Dimensions (L x W x H) 67" x 30" x 57" Range of Cross Feeds (IPR) 0.0003 - 0.01 IPR Range of Inch Threads (TPI) 4 - 112 TPI Range of Longitudinal Feeds (IPR) 0.0012 - 0.0294 IPR Range of Metric Threads 0.45 - 7.5 Range of Spindle Speeds (RPM) 0 - 2,200 RPM Size 13" x 40" Spindle Bore 1-1/2" Spindle Mount D1-4 Spindle Taper with Sleeve MT-5 Steady Rest Capacity 1/4" - 2-3/4" Style ELITE EVS Swing Over Bed 13" Swing Over Cross Slide 7-5/8" Swing Through Gap 19" Tailstock Spindle Travel 4-3/4" Taper in Tailstock Spindle MT-3 Weight 1433 lbs Width of Bed 8-1/2"
