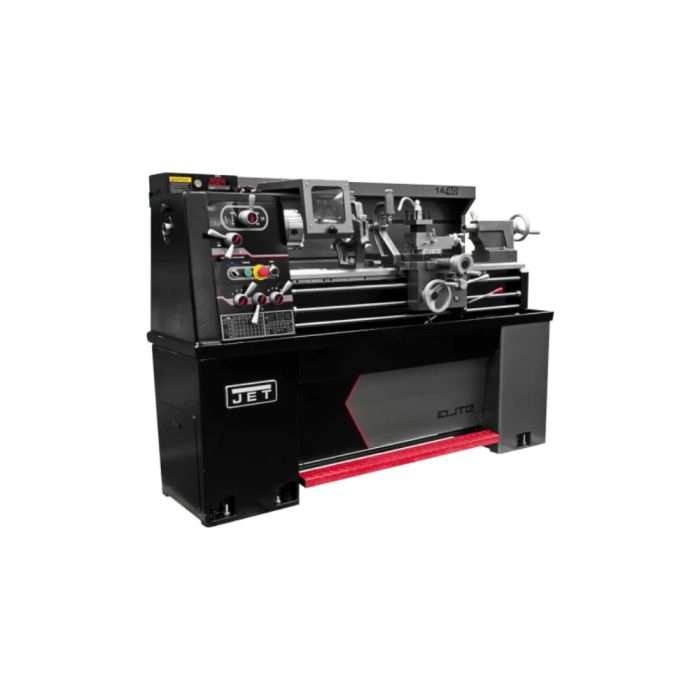

Jet JT9-892467 E-1440VS, Lathe with ACU-RITE 303 CSS DRO and Collet Closer Ships direct from manufacturer
Compact, powerful, perfection. Elite EVS lathes pack large features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring certified Meehanite castings, an electro-magnetic brake, three jaw chuck, ball bearing-mounted steady and follow rests, and CNC Style Lighting with enclosed splash guard, these lathes are truly Elite! CSA/CUS Certified.
WARNING: Proposition 65 Warning for California Residents
View Details More Information Manufacturer Jet Condition New UPC 00731325282887 Features 4-Position Carriage Stop Chuck guards are standard equipment on all ELITE lathes for increased safety Front facing chip pan allows easy chip removal from the front of the machine Hardened and ground gears in headstock reduce vibration and deflection Inverter drive system provides infinitely variable spindle speeds LED RPM readout allows for precise turning speeds Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM Horsepower 3 HP Motor Phase 3 Ph Warranty 3 Years
Type Lathe with ACU-RITE 303 CSS DRO Amperage Draw @ 230V 3Ph 9 Compound Slide Travel 4" Cross Slide Travel 7" Drive EVS Length of Gap 9" Model Number E-1440VS Number of Inch Threads 40 Number of Longitudinal and Cross Feed Rates 80 Number of Metric Threads 22 Overall Dimensions (L x W x H) 77" x 30" x 58" Range of Cross Feeds (IPR) 0.0003 - 0.01 IPR Range of Inch Threads (TPI) 4 - 112 TPI Range of Longitudinal Feeds (IPR) 0.0012 - 0.0294 IPR Range of Metric Threads 0.45 - 7.5 Range of Spindle Speeds (RPM) 0 - 2,200 RPM Size 14" x 40" Spindle Bore 1-1/2" Spindle Mount D1-4 Spindle Taper with Sleeve MT-5 Steady Rest Capacity (In.) 1/4" - 2-3/4" Style Elite EVS Swing Over Bed 14" Swing Over Cross Slide 8-5/8" Swing Through Gap 20" Tailstock Spindle Travel 4-3/4" Taper in Tailstock Spindle MT-3 Weight 1653 lbs Width of Bed 8-1/2" Motor Voltage 230 V
