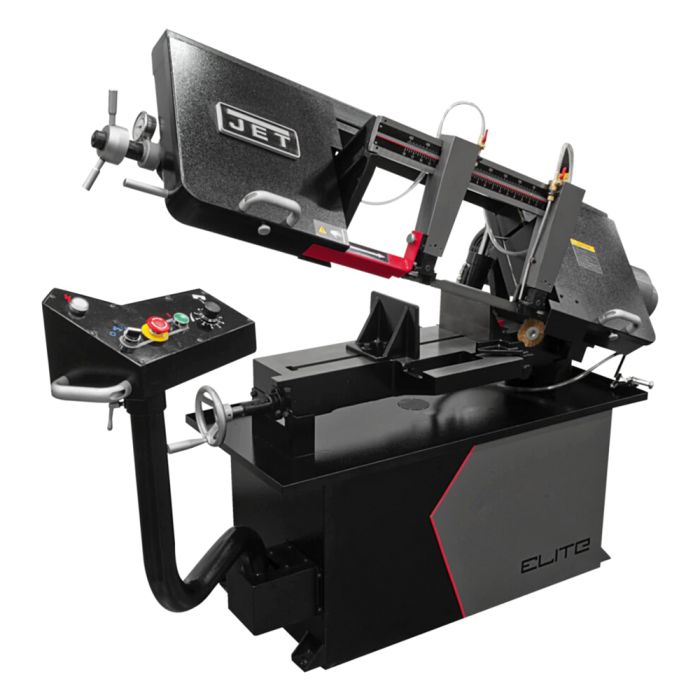

JET 891050 9" x 16" Variable Speed Bandsaw

SKU

891050

$6,859.00

Ships direct from manufacturer

Notify me when the price drops

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Description
Features/Specifications
Reviews

Product Description

A new legacy of saws. Saws that need to demonstrate new kinds of flexibility, are counted on to last longer and operate more safely at the same time. Mitering and dual mitering bring an added level of capabilities. All saws come standard with variable speed. Table heights have been optimized and a completely redesigned swing away control panel. These are the most precise, most durable and safest bandsaws you could ever put into your shop.

WARNING: Proposition 65 Warning for California Residents View Details

Features/Specifications

More Information
Manufacturer	Jet
Condition	New
Features	The Elite swing away panel reloates saw controls to a single location, offering finger-tip operation of most major saw functions For added safety, the EHB-916V Bandsaw follows strict guidelines and electrical requirements to be certified by CSA Group To reduce user fatigue and increase safety of the worker, we increased the saw bed height to up to 30 in. Automatic blade breakage sensor detects acciental breakage and interrupts the power Variable speed drivetrain allows operator to fine tune the blade speed fast and easily Integrated pressurized wash hose for easy machine cleaning Quick positioning vise for clamping of materials Large handwheel with blade tensioning gauge acurately measures blade pressure Automatic blade shut off switch stops the sawing process Hydraulic downfeed control is easily adjusted enabling feed feed rates to evolve with the variaous types of materials Built-in, self-propelled chip brush prevents chip build up in blade guides. Blade is fully guarded for operators safety Standard Equipment Coolant System Quick positioning vise Adjustable material stop 1 4/6 VT Bi-Metal blade
PDFs	891050_InstructionManual
Video
Suitable for Use With	For EHB-916V
Warranty	3-Year Warranty

Cutting Capacity Width	9"
Cutting Capacity Depth	16"
Round at 90 Degrees	9"
Round at 45 Degrees	7"
Rectangle at 90 Degrees	6" x 16"
Rectangle at 45 Degrees	7" x 8-1/2"
Square at 90 Degrees	9" x 9"
Square at 45 Degrees	7" x 7"
Vise Swivels	45°
Head Movement	0°
Blade Size	1" x 0.035" x 128-1/2"
Blade Wheel Diameter	14"
Blade Length	128-1/2"
Blade Speeds	53 - 275 (SFPM)
Bed Height	30"
Motor	1-1/2 HP, 115/230V, 1Ph
Amperage Draw @ 115V 1Ph	15
Amperage Draw @ 230V 1Ph	7
Drive	Variable Speed
Length	65"
Width	28"
Height	42"
Weight	726 lbs
