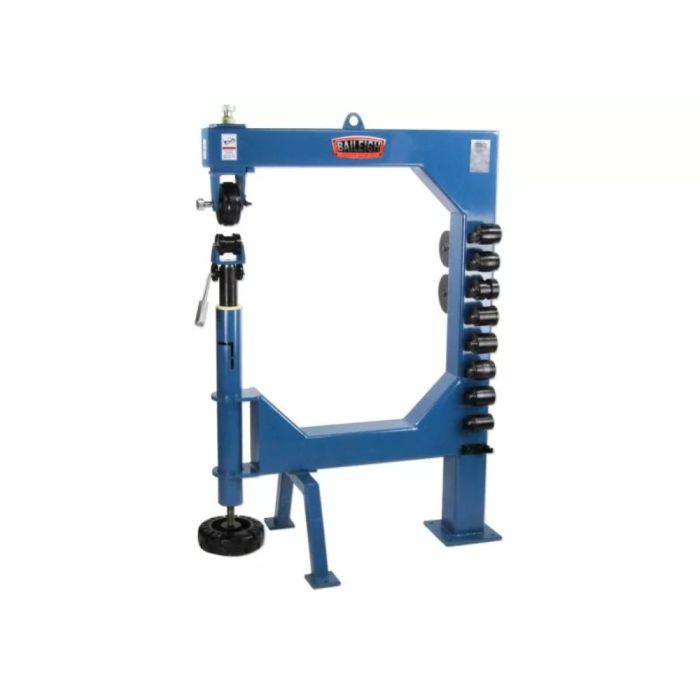

Baileigh Industrial BA9-1004189 EW-40, 16ga Manually Operated English Wheel

SKU
BA9-1004189
$3,266.00
Ships direct from manufacturer ?

Not all English wheels are the same. A 37 ¾" throat depth and box tubing frame make our EW-40 stand out from competing models. We include 9 bottom anvils and 3 upper wheels.

Recommended for: Restoration or bodywork on autos, planes, cycles, and much more.

Covered by a 1-year parts warranty. Includes lifetime technical support by phone. Questions? Not sure which is the best English wheel for you? Call us at 1-920-654-5815 and talk to a Baileigh expert.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerBaileigh Industrial
ConditionNew
UPC00731325405866
Features
  • 37 " throat depth
  • 16 gauge mild steel capacity
  • 3 upper wheels
  • 9 bottom anvils
  • 16-gauge mild steel capacity with a 37 ¾" throat depth that can handle almost any project
  • Comes with 3 upper wheels (6" x 2.75")
  • 9 hardened bottom anvils: ⅛", ½", and ¾" edge radii, 6" crown radius, 2 flat rolls, 5/16" x ¼" step roll, and 1½ " and ⅝" round bead rolls
  • You can roll beads as well as form metal on this English wheel
  • All upper wheels and lower anvils use sealed bearings
  • Swivel head lets you either push material directly into the throat or at a 90° to it
  • Quick-release cam allows you to release the panel without changing tension
  • Adjust the tension via the kick tensioner, made of real rubber
  • Fully welded 5" x 5" x .250" box tubing framework prevents flex when rolling at full capacity
  • Tooling holder on the side of the machine gives you a convenient place to put your rolls
Warranty1 Year
TypeEnglish Wheel
Model NumberEW-40
