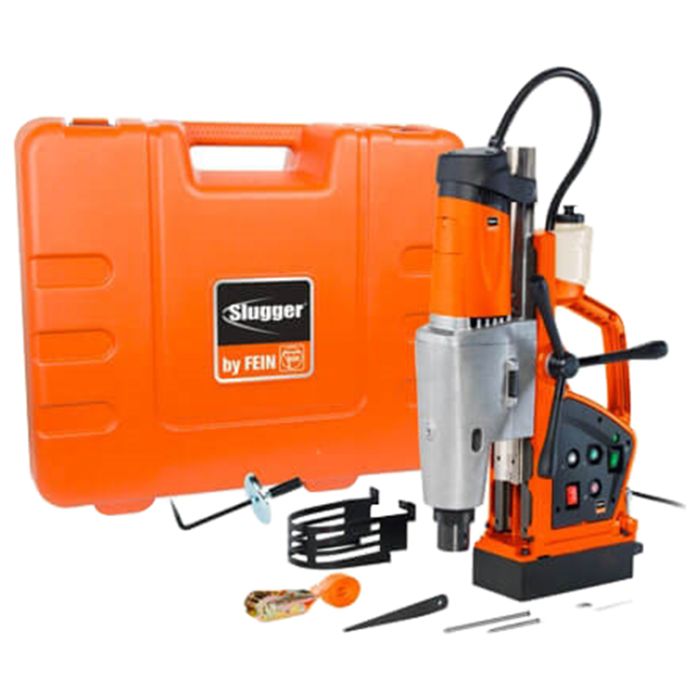

Fein 72706061090 JMU 404 M 4-5/16" Universal Magnetic Core Drill

SKU
72706061090
$3,899.95
Ships direct from manufacturer ?
Notify me when the price drops
Add to Wish List Add to Compare
Shipping Policy Return Policy
High-performance, long-stroke, 4-speed universal magnetic base drill with forward / reverse running, MT4 tool mounting and maximum functionality for heavy drilling work in the workshop.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerFein Power Tools
ConditionNew
UPC04014586889801
Features
  • FEIN 1,700 W high-performance motor with high torque for heavy drilling work
  • For tough use, thanks to top-quality workmanship and pivoting motor cable protection sleeve
  • Machine with extra large stroke for all drilling work
  • Mechanical 4-speed gearbox
  • High magnetic holding force
  • Torque arm for increased magnetic holding power
  • Motion sensor
  • Torque slip clutch
  • Easy to read convenient magnetic holding force display
  • Electronic speed setting
  • Reversible
  • MT4 tool mounting
  • Integrated coolant tank
Includes
  • Portable Residual Current Device (PRCD) Saftey Switch
  • Weldon 32 Mounting Shaft
  • Chip Hook
  • 2 x Hexagonal Socket Keys, 5 and 6 mm
  • Adapter with Weldon 1 1/4 Fitting and 3/4 Output in Weldon
  • 2 x Pilot Pins 6.35 mm Diameter x 125 mm and 7.98 mm Diameter x 184 mm
  • Additional Handle
  • Coolant Tank
  • Chip Guard
  • Case
  • Safety Strap with Ratchet
  • Drift
Electric BrakeNo
Variable speedNo
Type Magnetic Driller
Power Consumption 1,700 W
Power Output 850 W
Load Speed: 1st Gear (RPM) 60/120 RPM
Load Speed: 2nd Gear (RPM) 90/170 RPM
Load Speed: 3rd Gear (RPM) 150/300 RPM
Load Speed: 4th Gear (RPM) 230/430 RPM
No-Load Speed: 1st Gear (RPM) 100/190 RPM
No-Load Speed: 2nd Gear (RPM) 160/290 RPM
No-Load Speed: 3rd Gear (RPM) 270/500 RPM
No-Load Speed: 4th Gear (RPM) 420/750 RPM
Tool Mount MT 4
Carbide Cutter Maximum Diameter 4"
HSS Cutter Maximum Diameter 3"
Cutter Maximum Drilling Depth 4"
Twist Drill Maximum Diameter 1 3/8"
Tapping M 36
Maximum Countersinking Diameter 2 3/8"
Reaming Maximum Diameter 1 3/8"
Cutter Holder Weldon 32
Stroke 11"
Total Stroke Range 15 3/4"
Magnetic Holding Force 5171 lbs
Magnetic Base Dimensions 9 7/16" x 4 3/4"
Cable With Plug 13.1 ft
Weight 79.37 lbs
Sound Pressure Level LpA 86,0 dB
Measurement Uncertainty of the Measured Value KpA 5 dB
Sound Power Level LWA 97,0 dB
Measurement Uncertainty of the Measured Value KWA 5 dB
Peak Sound Value LpCpeak 98,5 dB
Measurement Uncertainty of the Measured Value KpCpeak 5 dB
Vibration Value 1 αhv 3-way ah,D = 1,4 m/s²
Measurement Uncertainty of the Measured Value Kα 1,5 m/s²
Application Mag Base Drilling Metal Up to 1 3/8" Diameter, Mag Base Drilling Metal Up to 2 in Diameter, Mag Base Drilling Metal Up to 2 9/16" Diameter, Mag Base Drilling Metal Up to 4 5/16" Diameter, Twist Drills with Drill Chuck, Spiral Drilling with Mt Fitting, Tapping, Countersinking, Reaming, Performing Overhead Work, Installation Work, Workshop Jobs
