Fein 71300565090 ABSS 18 1.6 E AS 18V Cordless Slitting Shear Set

SKU
71300565090
$749.95
Ships direct from manufacturer ?

Handy, maneuverable and fast cordless slitting shears for cuts and cut-outs in sheet metal up to 16 gauge [1.6mm] in thickness.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerFein Power Tools
ConditionNew
UPC04014586899923
Features
  • 590 [180] ft[m] cutting capacity (in 22 [0.8] gauge[mm] sheet metal) with one battery charge (4 Ah)
  • Rapid performance due to excellent view of the cutting line through the open-front cutting head
  • Left and right curve cuts and distortion-free cutting possible with one continuous chip
  • QuickIN for rapid, tool-free blade changing, with no further adjustment required
  • Excellent ergonomics and low weight
  • Cutting blade with outstanding service life
  • Proven MultiMaster motor with outstanding power and durability
  • Compatible with AMPShare/Bosch Professional 18 V batteries from 2008 on
  • Maximum cutting speed with AMPShare 18V batteries: Coolpack 2.0 technology ensures a longer battery service life in comparison to batteries without Coolpack technology. It makes longer operation times possible. ECP protects batteries against overloading, overheating and deep discharge
  • Perfectly equipped for any application. Mobile work with the L-BOXX system
  • State-of-the-art cell technology and intelligent battery management deliver 87% more power than conventional batteries
  • Variable speed
  • Full visibility of cutting line

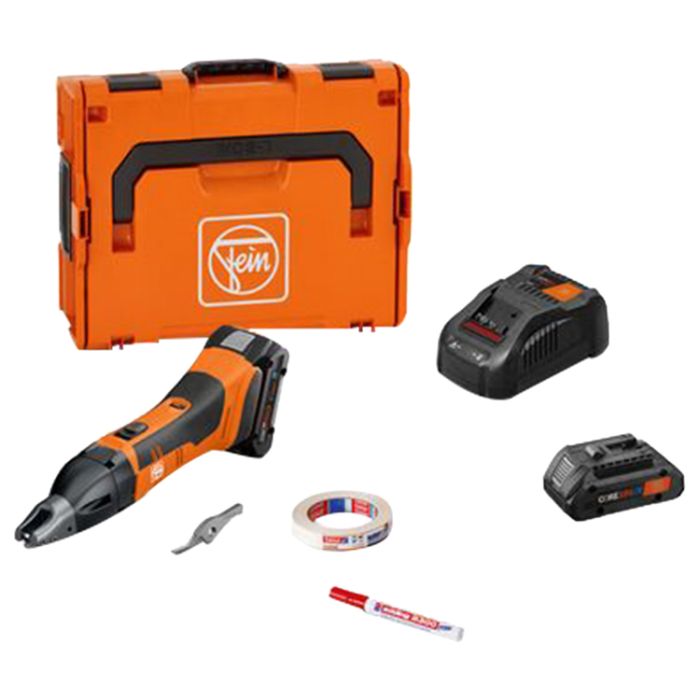

Includes
  • Cutter Blade (31308150009), Mounted
  • Pair of Dies (31308153014), Mounted
  • Allen Key 2,5 mm
  • Blade for Curves (31308151008)
  • Permanent Marker (32133037000)
  • Roll Painter'S Tape (32133038000)
  • Li-Ion Battery Packs (18 V / 4 Ah)
  • Rapid Charger BC 1880 CV AS (92604335010)
  • Tool Case (L-Boxx 136)
ApplicationCurve Cuts, Coil Cuts, Inside Cutouts, Profile Cuts, Notches
Type Slitting Shear
Battery Voltage 18 V
Battery Capacity 4 Ah
Battery Compatibility Li-ion/Core 18 V Li-ions
Battery Interface 18 V AMPShare
Strokes 2,200 - 3,500 SPM
Cutting Speed 16 - 26 ft/min
Steel 58,000 Lbf/In² 1/16"
Steel 87,000 Lbf/In² 3/64"
Steel 116,000 Lbf/In² 1/32"
Non-Ferrous Metals Up To 36,000 Lbf/In² 3/32"
Cutting Width 3/16"
Corded or Cordless Cordless
Radius of Smallest Curve 3 1/2" (1 1/4")¹
Immersion Diameter 1/2" (1/4")¹
Weight Without Battery 2.73 lbs
Sound Pressure Level LpA 74.3 dB
Measurement Uncertainty of the Measured Value KpA 3 dB
Sound Power Level LWA 85.3 dB
Measurement Uncertainty of the Measured Value KWA 3 dB
Peak Sound Value LpCpeak 87.6 dB
Measurement Uncertainty of the Measured Value KpCpeak 3 dB
Vibration Value 1 αhv 3-Way ah 4.6 m/s²
Measurement Uncertainty of the Measured Value Kα 1.5 m/s²
