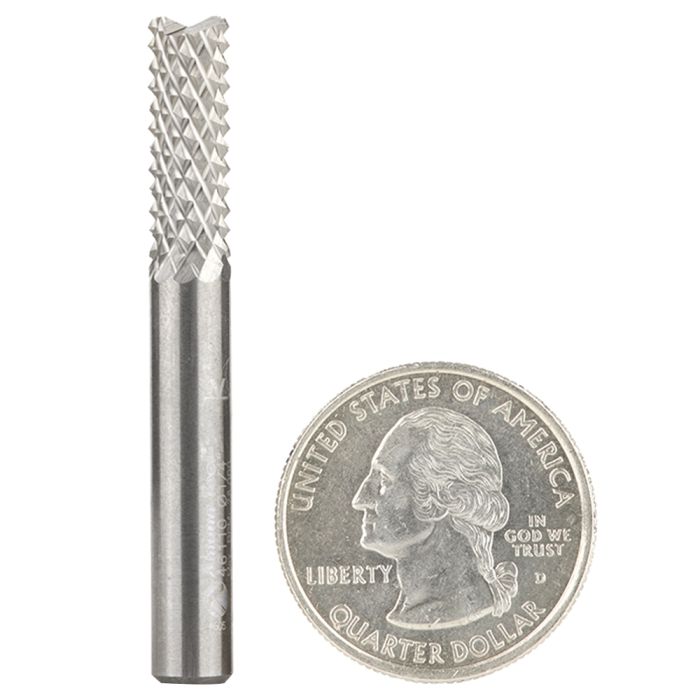

Amana Tool 46110 1/4" End Mill Point Diamond Pattern Composite Cutting Router Bit Ships direct from manufacturer
This bit Works well on epoxies made with carbon, glass and composite materials. The up-cut/down-cut diamond pattern cutting edges effectively grinds through the material evenly in all directions.
WARNING: Proposition 65 Warning for California Residents
View Details More Information Manufacturer Amana Tool Corp. Condition New UPC 73868586110 Application Composites, Fiberglass, Fiberglass PCB Board, Fiber Reinforced Plastic (FRP), Glass Fiber Reinforced Polymer - Plastic Materials (GFR), Glass Reinforced Plastic (GRP), G10, G11, Phenolic, Phenolic “Garolite” G-7 Type Router Bit
Diameter (D)
1/4"
Cutting Height (B)
3/4"
Shank (d)
1/4"
Overall Length (L)
2
Style
End Mill Point
Pattern
Diamond
Router Bit Type
Fine
Maximum Speed (RPM)
35,000 RPM
Chip Load Per Revolution IPR (Carbon, Carbon Graphite, Unfilled Plastics)
0.0025 " - 0.0040"
Chip Load Per Revolution IPR (Composites)
0.0008 " - 0.0020"
Chip Load Per Revolution IPR (Fiberglass Filled Plastics)
0.0008 " - 0.0020"
Chip Load Per Revolution IPR (Green Ceramic, Green Carbide)
0.0015 " - 0.0030"
