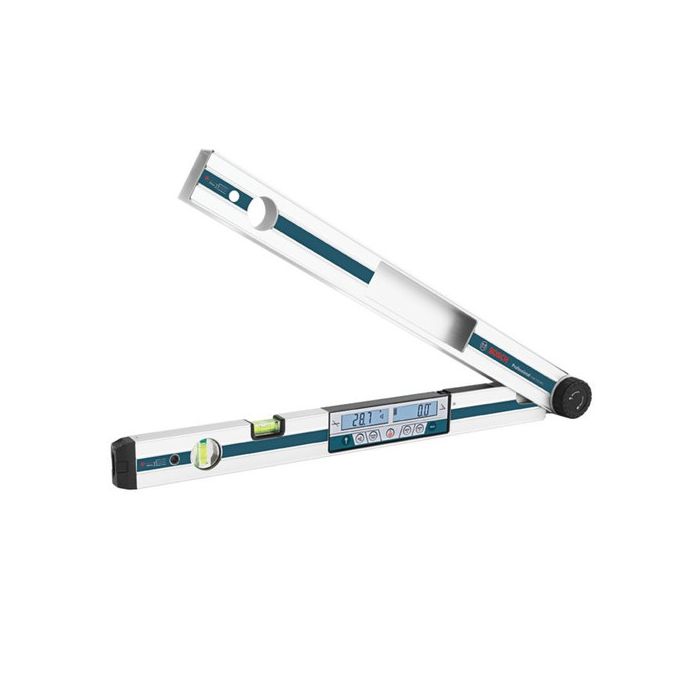

Bosch GAM 270 MFL Aluminum Digital Angle Finder and Inclinometer Level
Ships direct from manufacturer
A digital angle measurer and tilt measurer in one tool. Calculates bevel and miter angles autonomously. Laser tilt meter (maximum range 30 m).
WARNING: Proposition 65 Warning for California Residents
View Details More Information | Manufacturer | Bosch |
|---|
| Condition | New |
|---|
| UPC | 70000346471990 |
|---|
| Includes |
- Leg Extension
- 4 x AA Batteries
- Carry Case
|
|---|
| PDFs | |
|---|
| Type |
Angle Finder |
| Battery Type |
AA |
| Compound Cut Input Angle Range |
0 – 180 Deg |
| Battery Life |
50 Hours |
| Size |
26.9" x 2.0" x 2.4" |
| Battery Voltage |
1.5 V |
| Leg Extension Length |
16" |
| Material |
Aluminum |
| Width |
2" |
| Leg Extension Range |
0" - 6 3/4" |
| Length |
26.9" |
| Height |
2.4" |
| Accuracy (Angle and Readout) |
+/-0.1 Deg |
| Measuring Range |
0 - 270 Deg |
| Leveling Accuracy (Vial) |
+/- 0.05 Deg |
| Weight |
2.4 lbs |
| Protection Rating |
IP54 |
| Operating Temperature |
14 Deg F - 122 Deg F |
| Storage Temperature |
–4 Deg F - 158 Deg F |
| Automatic Switch-Off |
30 Min |
| Measuring Range (0 and 90 Degree) |
±0.05 Deg |
| Measuring Range (1 – 89 Degree) |
±0.1 Deg |
| Working Range of Laser 2 |
100' |
| Levelling Accuracy (Vertical) |
±0.5 mm |
| Levelling Accuracy (Horizontal) |
±1 mm |
| Laser Class |
2 |
| Laser Type |
650 nm, < 1 mW |
| Approximate Laser Beam Diameter (at 25 Degree C) |
0.1" (5 m Distance) |
| Approximate Laser Beam Diameter (at 25 Degree C) |
0.3" (10 m Distance) |
| Clearance of Laser Exit – Bottom Edge of Angle Finder and Digital Level |
1.2 " |
| Maximum Relative Air Humidity |
90 % |
