Plug-and-play power monitoring for 220V shop tools that draw more than 15 amps.

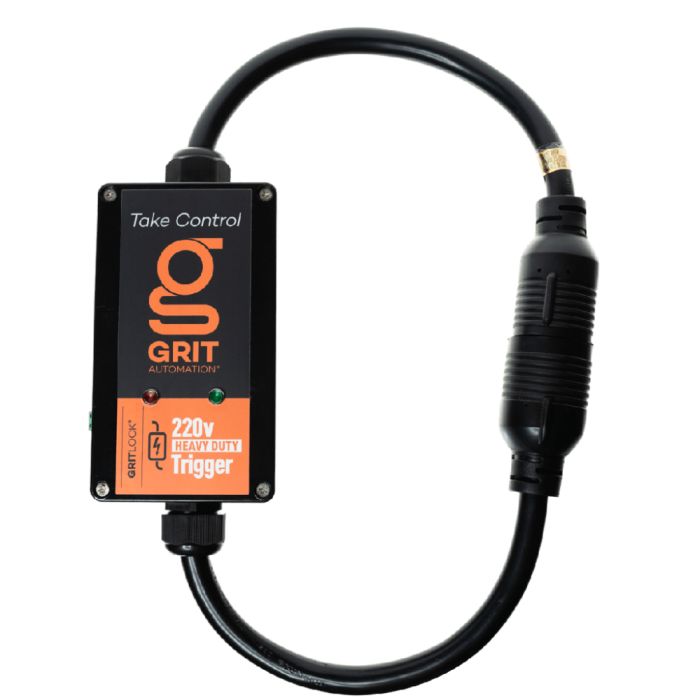

The Heavy Duty 220V Trigger handles the high-draw 220V tools the standard 15A Trigger can't — band saws, shapers, large lathes, and other single-phase 220V equipment up to 35A continuous. Plug it inline between the tool and the wall outlet, no wiring changes. When the tool powers on, the Hub opens the right blast gate, starts the collector, and logs the runtime automatically. One Trigger per tool.
WARNING: Proposition 65 Warning for California Residents View Details
35A capacity: Handles high-draw 220V tools the 15A Trigger cannot
Inline current sensing: Detects tool activation with no wiring changes
Automated dust collection: Opens blast gates and starts collectors on tool-on
Runtime logging: Tracks who ran the tool, when, and for how long
Access control lockout: Blocks power until an authorized badge is scanned
Status LED: Red & Green LED shows locked, idle, or running at a glance
Includes
1x GRIT Heavy Duty 220V 35A Trigger (GA-TR2002)
1x Power cord — Plug Type Customized
Voltage
220 V
Type
Trigger
Amperage
35A Continuous
Phase
Single-phase
Plug Options
NEMA 6-15 (14 AWG), NEMA 6-20 (12 AWG), L6-20 (12 AWG), L6-30 (10 AWG)
Connectivity
GRIT Mesh Network
Status
Red & Green LED
Suitable for Use With
Works With Any 220v Single-phase Tool Drawing Up to 35a Continuous. Pair With Grit Gates and Collectors for Full Dust-collection Automation. Hub Pro Required for RFID Access Control and Multi-zone Systems. For 120v Tools, See the Heavy Duty 120v 35a Trigger. For Three-phase or 50a+ Loads, See the Industrial Trigger Series.
