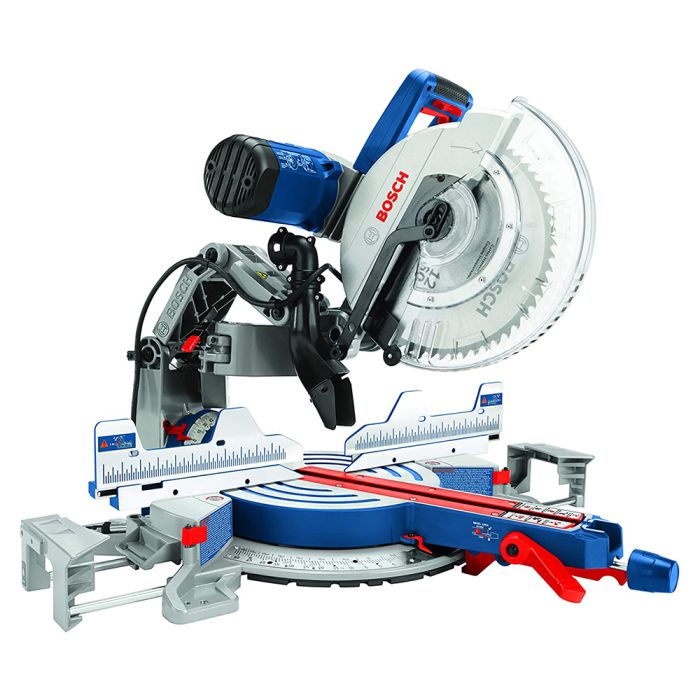

The Bosch GCM12SD is a 12" dual-bevel glide miter saw that features a smooth cutting motion, accurate performance and a space-saving design of the bosch-exclusive axial-glide system
Pre-aligned square lock fences help the saw maintain precision throughout its life
A soft-grip ambidextrous handle along with a combination dust chute and vacuum adapter add to user comfort
The saw also offers a large cutting capacity, easy-to-read bevel and miter scales with detents at common angles, and easy-access upfront controls
Integrated Expanding Base Extensions: 60% More left-to-right material support than leading competitor 40" left to right
Large Easy-to-Read Uniform Bevel and Stainless Steel Miter Scales: 52 degree left and 60 degree right miter capacity; 47 degree left and 47 degree right bevel capacity with marked detents and roof pitch angles
Adjustable Miter Detents: Detents at 0 degree, 15 degree, 31.6 degree, 22.5 degree, 45 degree, 60 degree right super-accurate and durable design
Push-Button Miter Detent Override: Easy-to-access thumb actuated control right up front for fine miter angle adjustment
Bevel Detents: 0, 33.9 Degree, 45 degree left/right for accurate cuts
Category Best 90% Dust Collection: Optimized for cutting 2x material with a vacuum
Ergonomic ambidextrous trigger handle with soft grip large form fitting ergonomic handle provides comfort for all-day use
Includes
Premium 12" 60-Tooth Carbide-Tipped Blade
Wrench
Toolless Vertical Work Clamp
Dust Bag and Assembly
Vacuum Adapter Elbow
Amperage
15.0 Amps
Electric Brake
Yes
Variable speed
No
Warranty
1 Year
Type
Miter Saw
Corded or Cordless
Corded
Blade Size
12"
Bevel Angle Range
47 Deg Left / 47 Deg Right
Bevel Stops
0 Deg, 33.9 Deg, 45 Deg and 47 Deg (L/R)
Dust Collection
Yes
Overall Height
27"
Height (Base Feet to Table Surface)
3.75"
Length
32.375"
Maximum Base Molding Against Fence
3 7/8" (6 3/4" from 0 Deg to 47 Deg L)
Maximum Crown Molding (38 Deg Spring) Angled Against Fence
5 1/4" (5 1/2" from 0 Deg to 47 Deg L)
Maximum Crown Molding (45 Deg Spring) Angled Against Fence
6"
Maximum Cut Capacity - 0 Deg Miter 0 Deg Bevel
3 1/2" x 13 1/2" (4 x 14 Dimensional Lumber)
Maximum Cut Capacity - 0 Deg Miter 45 Deg Left Bevel
2" x 13 1/2" (2 x 14 Dimensional Lumber)
Maximum Cut Capacity - 0 Deg Miter 45 Deg Right Bevel
1 1/2" x 13 1/2" (2 x 14 Dimensional Lumber)
Maximum Cut Capacity - 45 Deg Miter 0 Deg Bevel
3 1/2" x 9 1/2" (4 x 10 Dimensional Lumber)
Maximum Cut Capacity - 45 Deg Miter 45 Deg Left Bevel
2" x 9 1/2" (2 x 10 Dimensional Lumber)
Maximum Cut Capacity - 45 Deg Miter 45 Deg Right Bevel
Miter Saw Stands T1B, T4B, GTA3800, Crown Molding Stops (Pair) MS1233, Length Stop MS1234, Anti-Static Vacuum Hoses VH1622A and VH1635A (by Means of Anti-Static Adapter Included with those Hoses), VAC008, and Most Other 22 mm and 35 mm Anti-Static Hoses, Other Vacuum Hoses VH1022, VH1035 and VH1635 (by means of VX120 Adapter Included with those Hoses), VAC005 and VAC006 Hoses, and most Other 22 mm and 35 mm Hoses, Adapters for 1-1/4" and 1-1/2" Vacuum Hoses VAC024. (The VAC002 adapter is not compatible with the GCM12SD)
