Jet JT9-323404 GH-1440-3, Lathe with 203 DRO and Collet Closer

SKU
JT9-323404
$30,909.00
Ships direct from manufacturer?

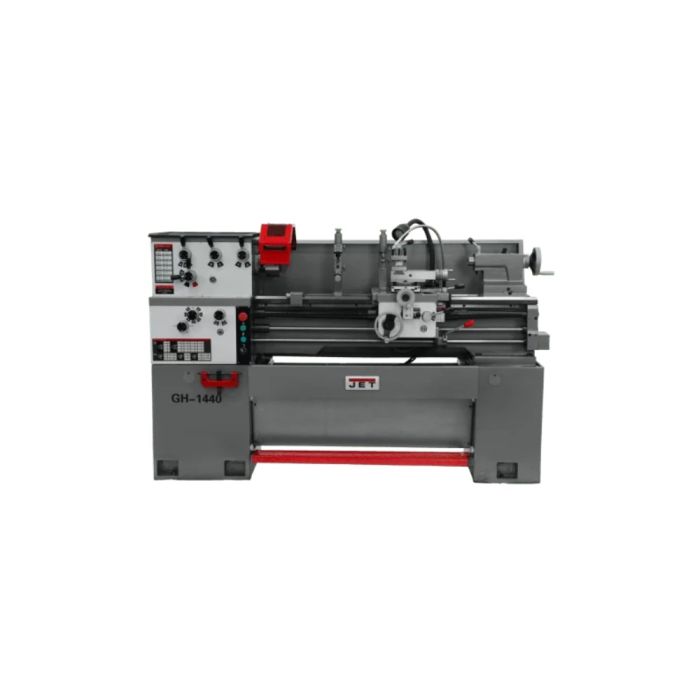

The new JET GH-1440-1 and GH-1440-3 Geared Head Engine Lathes weigh over one ton and come equipped with precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for the ultimate working durability. The enclosed gearbox design, standard coolant system, and lead screw cover provide a smooth and quiet operation while maintaining peak performance. The GH-1440-1 and GH-1440-3 also includes an emergency stop within easy reach of the operator as well as a patented Electronic Chuck Key Docking Station that prevents startup without the chuck key when safely docked.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerJet
ConditionNew
UPC00731325733778
Features
  • Compound and cross slide have backlash elimination
  • Front Removable Chip Tray
  • Full Length Splash Guard
  • Inch-metric dials are standard
  • Independent lead screw and feed rod
  • Safety on/off switch
  • Spindle actuation control is apron mounted
  • Spindle jog button for easy gear engagement and spindle inching
  • Splined, not keyed, shafts are utilized
  • Tailstock may be offset for turning taper
Horsepower3 HP
Motor Phase3 Ph
Warranty2 Years
TypeLathe with ACU-RITE 203 DRO
Carriage Travel37-1/2"
Compound Slide Travel3-1/2"
Length of Gap9-3/8"
Maximum Tool Size5/8" x 5/8"
Model NumberGH-1440-3
Number of Inch Threads40
Number of Longitudinal and Cross Feed Rates40
Number of Metric Threads23
Number of Spindle Speeds12
Overall Dimensions (L x W x H)74-4/5" x 28" x 46"
Range of Cross Feeds (IPR)0.0004 - 0.0103 IPR
Range of Inch Threads (TPI)4-112 TPI
Range of Longitudinal Feeds (IPR)0.0012 - 0.0294 IPR
Range of Metric Threads0.45-7.5
Range of Spindle Speeds (RPM)40-1800 RPM
Spindle Bore1-1/2"
Spindle MountD1-4
Spindle Taper with SleeveMT-5
Steady Rest Capacity (In.)3-1/2"
Swing Over Bed14"
Swing Over Cross Slide8-1/5"
Swing Through Gap20"
Tailstock Spindle Travel4-3/4"
Taper in Tailstock SpindleMT-3
Weight2336 lbs
Width of Bed10-1/5"
Motor Voltage230/460 V
