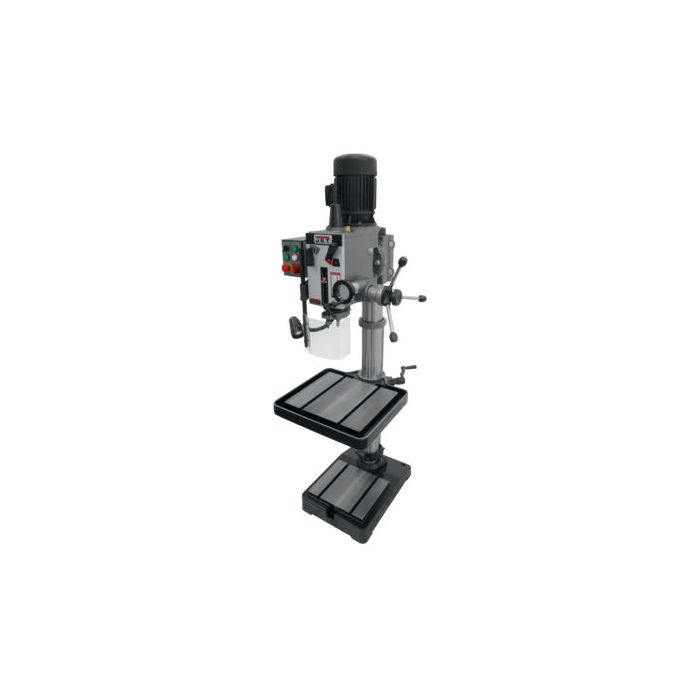

JET 354022 GHD-20T Manual Feed Drill Press with Tapping, 1-1/4" Drilling Capacity, 2HP, 3Ph, 230V, 12 Speeds Ships direct from manufacturer
Usually ships in 24-48 hours
JET Geared Head Drill Presses are ideal for repetitive drilling in a wide variety of materials. These drill presses are equipped with helical gears for smooth and quiet operation, a quick-release drill ejector and English/Metric depth gauge. T-slotted table, 12 spindle speeds, and a head and table that rotate 360° around the column enhance overall use and supply premier results.
WARNING: Proposition 65 Warning for California Residents
View Details More Information Manufacturer Jet Condition New UPC 66275516145 Features Heavy-duty design allows a variety of precision drilling and tapping applications Integrated tapping and reversing controls Large production table and T-slotted base Easy-to-read internal depth gauge Calibrated fine downfeed built in TEFC motor Built-in spindle lock Head tilts left or right Easily accessible table raiser Drill chuck arbor Draw bar PDFs Motor Phase 3 Ph Stationary type Geared Head Warranty
2 Year Warranty
Motor Power 2 HP (2 Speed) Motor Voltage 230 V Prewired Voltage 230 V Cycle 60 Hz Drills to Center of Circle 20" Drilling Capacity Cast Iron 1-1/2" Drilling Capacity Mild Steel 1-1/4" Tapping Capacity Cast Iron 15/16" Tapping Capacity Mild Steel 15/16" Swing 20" Column Diameter 4-1/2" Distance Column to Spindle 10" Range of Spindle Speeds (RPM) 60, 120, 130, 230, 260, 450, 460, 800, 900, 1,500, 1,600, 3,000 RPM Spindle Taper MT-3 (In. x TPI) Spindle Travel 5" Spindle Distance to Base 44-15/16" Spindle Distance to Table (Max.) 30-1/2" Quill Diameter 3" Quill Feed Manual Table Travel 25-1/2" T-Slots Number and Size 2 & 5/8" T-Slot Centers 9" Work Table Weight Capacity (Lbs.) 275 lbs Table Size (L x W) 21-3/4" x 19-1/2" Base Work Table 15-1/4" x 13" Base Slots Number & Size 2 & 5/8" Base Dimensions 26" x 18" Length Width 24" Height 71" Weight 700 lbs Warranty
