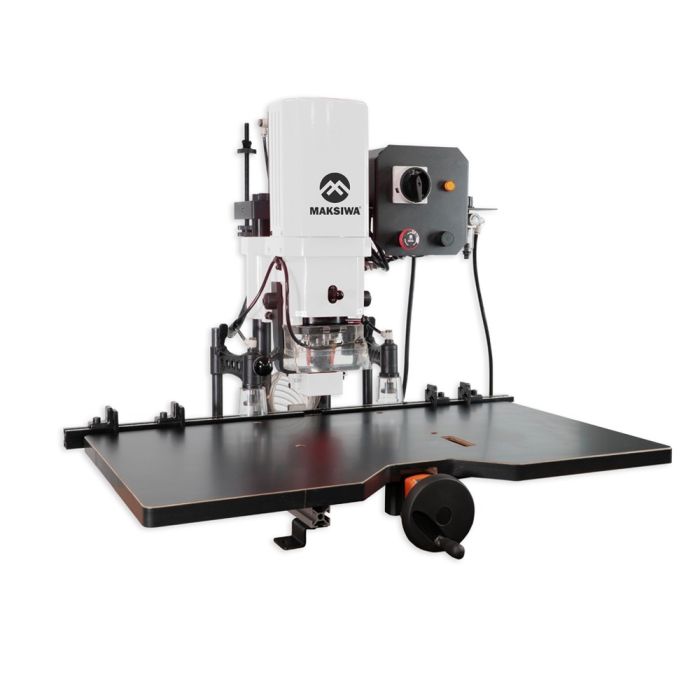

Maksiwa HBM.1000 Hinge Boring Machine
Ships direct from manufacturer
Make it easy to bore and insert hardware efficiently for system and hinge connections.
Ensures accurate and consistent hinge cup holes for installations.
Easy setup and adjustments for increased productivity.
WARNING: Proposition 65 Warning for California Residents
View Details More Information | Manufacturer | Maksiwa |
|---|
| Condition | New |
|---|
| Type |
Hinge Boring Machine |
| Electrical Specs |
1 Phase - 110V 13.6 AMPS / 220V 6.8 AMP |
| Motor Specs |
1 HP / 1.1 KW 3400 RPM |
| Table Size |
18" x 31-1/2" |
| Machine Table Height |
5 - 3/8" |
| Machine Table Depth |
2- 3/4" |
| Hinge Boring Bit Diameter |
Carbide Tipped - 35 mm |
| Hinge Boring Bit Rotation |
Right |
| Hinge Boring Shank |
10 mm |
| Hinge Boring Length |
57 mm |
| Drill Bits Diameter |
Carbide Tipped - 8 mm |
| Drill Boring Bits Rotation |
Left |
| Drill Boring Shank |
10 mm |
| Machine Dimensions (L x W x H) |
33-7/16"x 28-3/8" x 31-1/2" |
| Number of Stops |
2 Left / 2 Right |
| Maximum Depth of Stroke |
4 - 5/16" |
| Boring Distance Center Spindle |
0 - 2-3/4" |
| Air Requirement |
90 PSI - 3 SCFM |
| Machine Weight |
110 lbs |
| Average Noise Emissions |
78 dB |
